Schnellspanner vertikal schwere Ausführung mit fester Andruckspindel
Artikelnummer: 05750
Produktinfo
Material
Steel
Yta
Black oxide finish, clamping spindle and nuts phosphated, bearing pins and bearing sleeves case-hardened, plastic handle oil-resistant
Notera
Oil all joints regularly.
See 05884, 05885, 05886, 05887, 05890 for accessories.
| Order No. | Opening angle of holding arm | Opening angle of handle | A | A1 | A2 | A3 | B | B1 | B3 | C | C1 | D | L | L1 | S | Approx. weight kg | Hand force N | Holding force F1 N | Clamping force F3 N | H | M | L2 |
|---|
| 05750-0700 | 180° | 120° | 25 | 45 | 10 | 25 | 50 | 68 | 10 | 45 | 30 | 8,3 | 124 | 50 | 5 | 1,125 | 340 | 6000 | 1400 | 215 | M12x100 | 20 |
| 05750-1200 | 180° | 125° | 30 | 51 | 10 | 25 | 60 | 86,5 | 12 | 58 | 30 | 8,3 | 144 | 60 | 6 | 1,950 | 500 | 8000 | 1400 | 250 | M12x100 | 23 |
| 05750-2400 | 195° | 130° | 40 | 64 | 12 | 40 | 75 | 105 | 16 | 70 | 38 | 10,3 | 188 | 75 | 8 | 4,100 | 500 | 15000 | 1850 | 295 | M16x150 | 37 |

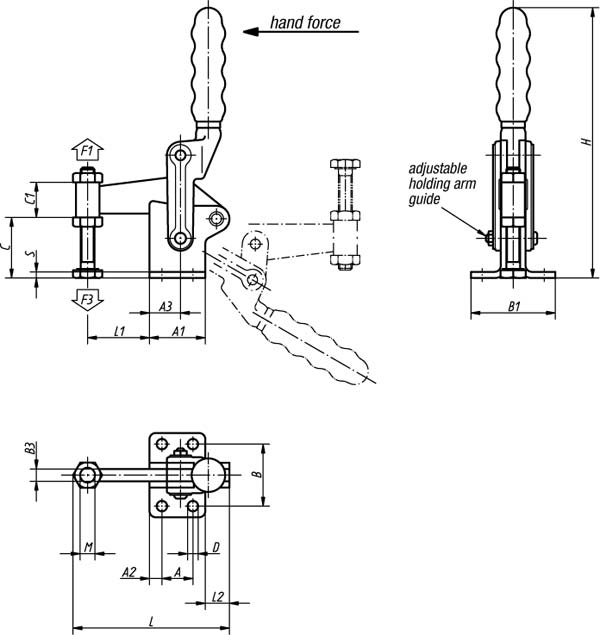

Konstruktion
