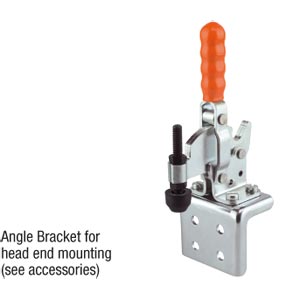

Kurvenschnellspanner vertikal mit waagrechtem Fuß
Artikelnummer: 05745
Produktinfo
Material
Steel
Yta
Galvanized and chromated,
clamping spindle and nuts phosphated,
plastic handle oil-resistant
Notera
The Curved Clamps are ideal for clamping workpieces with a relatively large tolerance such as casting blanks or nonferrous metals.
See 05880, 05882, 05885, 05886, 05887, 05890 for accessories.
| Order No. | Opening angle of holding arm | Opening angle of handle | A | A1 | A2 | B | B1 | C | C1 | D | L | L1 | Order No. Angle Bracket | Approx. weight kg | Hand force N | Holding force F1 N | Clamping force F3 N | H | M | L2 |
|---|
| 05745-0075 | 90° | 80° | 16 | 26 | 5 | 24 | 34 | 16 | 9,5 | 4,4 | 52 | 22 | 05880-02 | 0,100 | 190 | 750 | 350 - 600 | 93 | M5x35 | 7 |
| 05745-0250 | 85° | 80° | 19 | 35 | 8 | 32 | 47 | 30 | 21,5 | 7,1 | 74 | 32 | 05880-04 | 0,430 | 190 | 2500 | 850 - 1200 | 176 | M8x60 | 20 |
| 05745-0350 | 90° | 80° | 32 | 50 | 9 | 45 | 64 | 42 | 25,5 | 8,3 | 116 | 59 | 05880-06 | 0,895 | 230 | 3500 | 950 - 1400 | 220 | M10x80 | 13 |
Konstruktion
