Schnellspanner vertikal mit Winkelfuß und fester Andruckspindel
Artikelnummer: 05735
Produktinfo
Material
Steel
Yta
Galvanized and chromated,
clamping spindle and nuts phosphated,
plastic handle oil-resistant
Notera
The opening angle between the holding arm and the handle can be reduced or enlarged by repositioning or removing the stop pin.
A neoprene pressure pad is supplied with model 05735-0100.
See 05882, 05885, 05886, 05887, 05890 for accessories.
| Order No. | Opening angle of holding arm position 1 | Opening angle of holding arm stop pin removed | Opening angle of handle position 1 | Opening angle of handle stop pin removed | Hand force N | A | A1 | A2 | A3 | B | B1 | C | C1 | D | L | L1 | Holding force F1 N | Clamping force F3 N | Approx. weight kg | H | M | L2 |
|---|
| 05735-0100 | 80° | 190° | 60° | 100° | 80 | 14 | 29 | 7 | - | 17,5 | 28 | 44 | 9,5 | 4,8 | 66 | 24,5 | 850 | 650 | 0,140 | 122 | M5x35 | 36 |
| 05735-0200 | 105° | 175° | 70° | 95° | 100 | 19 | 35 | 8 | - | 25 | 41 | 64 | 12,7 | 5,5 | 77 | 27 | 1600 | 1150 | 0,285 | 170 | M6x50 | 44 |
| 05735-0300 | 105° | 160° | 65° | 90° | 130 | 35 | 51 | 8 | 16 | 35 | 51 | 81 | 21,5 | 6,8 | 116 | 58 | 3000 | 1150 | 0,590 | 235 | M8x60 | 51 |

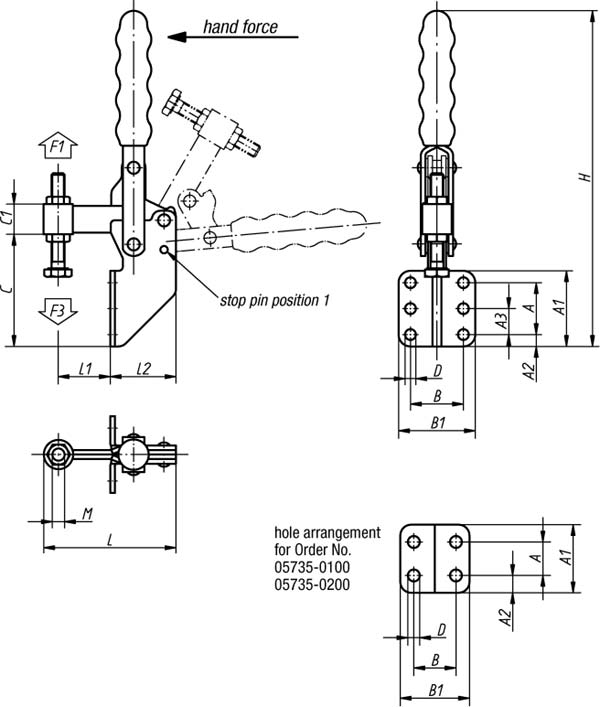

Konstruktion
