Schnellspanner vertikal mit Winkelfuß und verstellbarer Andruckspindel
Artikelnummer: 05730
Produktinfo
Material
Steel
Yta
Galvanized and chromated,
clamping spindle and nuts phosphated,
plastic handle oil-resistant
Notera
The opening angle between the holding arm and the handle can be reduced or enlarged by repositioning or removing the stop pin.
A neoprene pressure pad is supplied with model 05730-0100.
See 05882, 05885, 05886, 05887, 05890, 05891 for accessories.

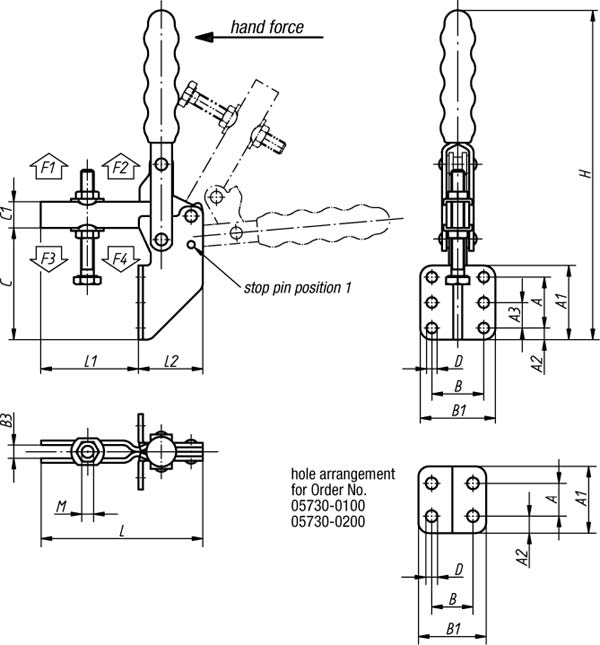

| Order No. | Opening angle of holding arm position 1 | Opening angle of holding arm stop pin removed | Opening angle of handle position 1 | Opening angle of handle stop pin removed | Hand force N | Clamping force F4 N | A | A1 | A2 | A3 | B | B1 | B3 | C | C1 | D | L | L1 | Holding force F1 N | Holding force F2 N | Clamping force F3 N | Approx. weight kg | H | M | L2 |
|---|
| 05730-0100 | 80° | 190° | 60° | 100° | 80 | 800 | 14 | 29 | 7,5 | - | 17,5 | 28 | 5,5 | 44 | 9,5 | 4,8 | 67 | 31 | 700 | 1000 | 500 | 0,110 | 122 | M5x35 | 36 |
| 05730-0200 | 105° | 175° | 70° | 95° | 100 | 1350 | 19 | 35 | 8 | - | 26 | 42 | 6,3 | 64 | 12,7 | 5,5 | 79 | 35 | 1000 | 2200 | 950 | 0,250 | 170 | M6x50 | 44 |
| 05730-0300 | 105° | 160° | 65° | 90° | 130 | 1850 | 35 | 51 | 8 | 16 | 35 | 51 | 8,8 | 82 | 19 | 6,8 | 143 | 92 | 2000 | 3700 | 900 | 0,500 | 235 | M8x60 | 51 |
