Schnellspanner vertikal mit waagrechtem Fuß und fester Andruckspindel
Artikelnummer: 05720
Produktinfo
Material
Steel
Yta
Galvanized and chromated, clamping spindle and nuts phosphated, plastic handle oil-resistant
Notera
The opening angle between the holding arm and the handle can be reduced or enlarged by repositioning or removing the stop pin.
A neoprene pressure pad is supplied with models 05720-0100 and 05720-0150.

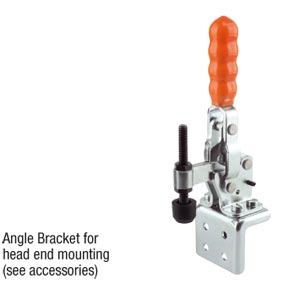

See 05880, 05882, 05885, 05886, 05887, 05890 for accessories.

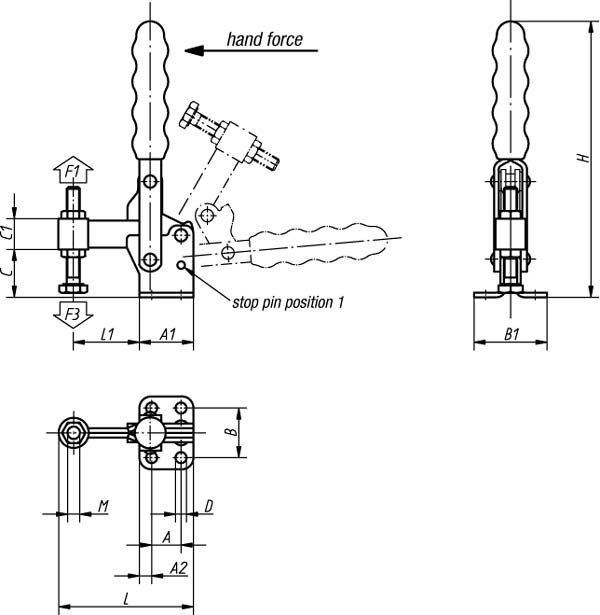

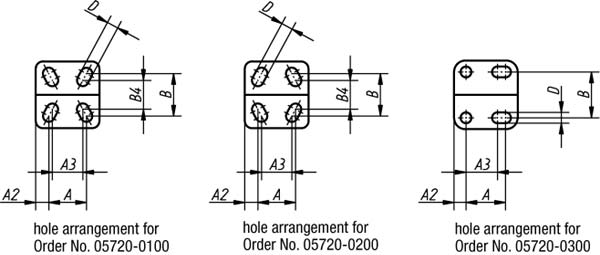

| Order No. | Opening angle of holding arm position 1 | Opening angle of holding arm stop pin removed | Opening angle of handle position 1 | Opening angle of handle stop pin removed | Hand force N | A | A1 | A2 | A3 | B | B1 | B4 | C | C1 | D | L | L1 | Order No. Angle Bracket | Approx. weight kg | Holding force F1 N | Clamping force F3 N | Opening angle of holding arm position 2 | Opening angle of handle position 2 | H | M |
|---|
| 05720-0100 | 95° | 185° | 65° | 105° | 80 | 16 | 28 | 6 | 14 | 24 | 34 | 17,5 | 22 | 9,5 | 4,8 | 65 | 32 | - | 0,125 | 850 | 650 | - | - | 103 | M5x35 |
| 05720-0150 | 95° | 185° | 75° | 110° | 120 | 12,7 | 27 | 7 | - | 27 | 38 | - | 23 | 11 | 5,1 | 60 | 26 | 05880-02 | 0,195 | 1500 | 900 | - | - | 125 | M6x50 |
| 05720-0200 | 105° | 175° | 70° | 95° | 100 | 19 | 35 | 8 | 12,7 | 27 | 42 | 25 | 29 | 12,7 | 5,5 | 77 | 37 | - | 0,230 | 1600 | 1150 | - | - | 135 | M6x50 |
| 05720-0250 | 95° | 160° | 70° | 100° | 190 | 19 | 35 | 8 | - | 32 | 47 | - | 29 | 21,5 | 7,1 | 87 | 45 | 05880-04 | 0,380 | 2500 | 1150 | 125° | 85° | 175 | M8x60 |
| 05720-0300 | 105° | 160° | 65° | 90° | 130 | 25 | 43 | 9 | 19 | 34,5 | 52 | - | 32 | 21,5 | 8 | 115 | 65 | - | 0,500 | 3000 | 1150 | - | - | 186 | M8x60 |
| 05720-0350 | 90° | 180° | 70° | 110° | 230 | 32 | 50 | 9 | - | 45 | 64 | - | 40 | 25,5 | 8,3 | 123 | 65 | 05880-06 | 0,860 | 3500 | 1650 | 120° | 80° | 220 | M10x80 |
| 05720-0450 | 90° | 180° | 70° | 110° | 260 | 32 | 53 | 10 | - | 45 | 64 | - | 47 | 30 | 8,7 | 136,5 | 74 | 05880-06 | 1,300 | 4500 | 1650 | 125° | 85° | 228 | M12x100 |
| 05720-0550 | 90° | 180° | 65° | 110° | 290 | 51 | 76 | 12,5 | - | 70 | 95 | - | 81 | 38 | 12,3 | 196,5 | 108 | - | 2,300 | 5500 | 1900 | 120° | 80° | 312 | M16x150 |
