Schnellspanner vertikal mit senkrechtem Fuß und fester Andruckspindel
Artikelnummer: 05705
Produktinfo
Material
Steel
Yta
Galvanized and chromated,
clamping spindle and nuts phosphated,
plastic handle oil-resistant
Notera
The opening angle between the holding arm and the handle can be reduced or enlarged by repositioning or removing the stop pin.
A neoprene pressure pad is supplied with model 05705-0150.
See 05882, 05885, 05886, 05887, 05890 for accessories.

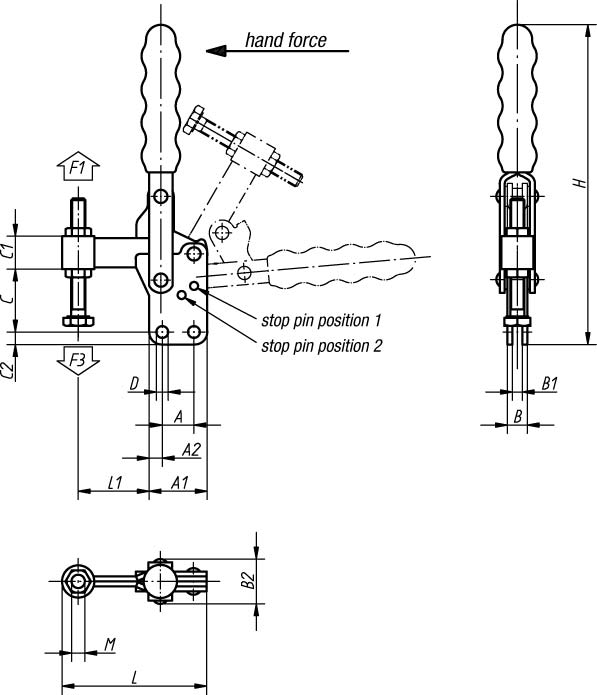

| Order No. | Opening angle of holding arm position 1 | Opening angle of holding arm position 2 | Opening angle of holding arm stop pin removed | Opening angle of handle position 1 | Opening angle of handle position 2 | Opening angle of handle stop pin removed | Hand force N | A | A1 | A2 | B | B1 | B2 | C | C1 | C2 | D | L | L1 | Approx. weight kg | Holding force F1 N | Clamping force F3 N | H | M |
|---|
| 05705-0150 | 95° | - | 185° | 75° | - | 110° | 120 | 12,7 | 27 | 7 | 12 | 6 | 24 | 28 | 11 | 5,4 | 5,1 | 60 | 26 | 0,195 | 1500 | 900 | 135 | M6x50 |
| 05705-0250 | 95° | 125° | 160° | 70° | 85° | 100° | 190 | 19 | 35 | 8 | 12 | 6 | 26 | 37 | 21,5 | 7 | 7,1 | 87 | 45 | 0,380 | 2500 | 1150 | 190 | M8x60 |
| 05705-0350 | 90° | 120° | 180° | 70° | 80° | 110° | 230 | 32 | 50 | 9 | 16 | 8 | 33 | 52 | 25,5 | 9,6 | 8,3 | 124 | 65 | 0,850 | 3500 | 1650 | 240 | M10x80 |
| 05705-0450 | 90° | 125° | 180° | 70° | 85° | 110° | 260 | 32 | 53 | 10 | 20 | 10 | 42 | 57 | 30 | 8,7 | 8,7 | 136 | 74 | 1,300 | 4500 | 1650 | 246 | M12x100 |
| 05705-0550 | 90° | 120° | 180° | 65° | 80° | 110° | 290 | 51 | 76 | 12,5 | 20 | 10 | 41 | 101 | 38 | 12,7 | 12,3 | 197 | 108 | 2,300 | 5500 | 1900 | 345 | M16x150 |
Konstruktion
