Steckverbinder Gelenk mit einem Abgang
Artikelnummer: 29442
Produktinfo
Notera
The plug connectors are simply inserted into the corresponding square tube. They can be disassembled and used again. The specified adjustment range can be aligned continuously. The outlet can be revolved around its own axis.

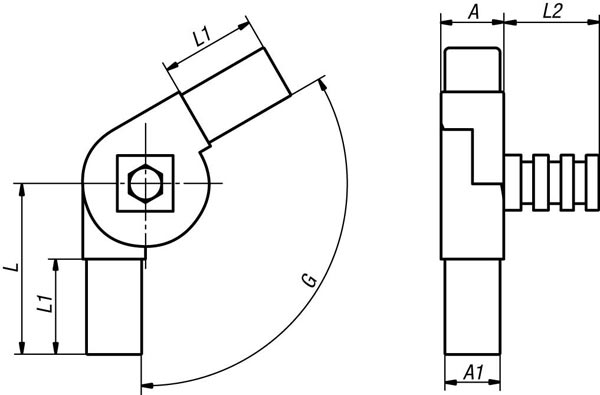

| Order No. | A | A1 | L | G | Suitable for square tubes | Approx. weight kg | L1 | L2 |
|---|
| 29442-1251511 | 25 | 22 | 68 | 0° - 190° | 25 x 25 x 1,5 | 0,092 | 38 | 42 |
| 29442-1251512 | 25 | 22 | 59 | 45° - 195° | 25 x 25 x 1,5 | 0,083 | 38 | 42 |
Konstruktion
