Steckverbinder Verbindungsstück
Artikelnummer: 29400
Produktinfo
Notera

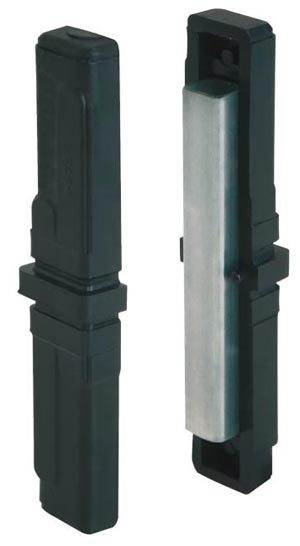

Plug system without screws. The plug connectors are simply inserted into the corresponding square tube. They can be disassembled and used again.

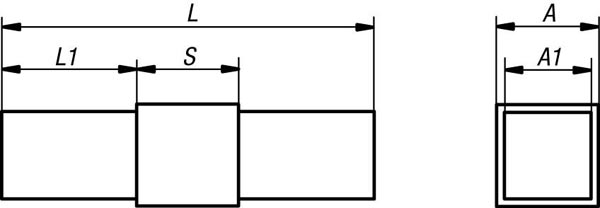

| Order No. | A | A1 | L | L1 | S | Suitable for square tubes | Approx. weight kg |
|---|
| 29400-1201512 | 20 | 17 | 95 | 45 | 5 | 20 x 20 x 1,5 | 0,045 |
| 29400-1251512 | 25 | 22 | 133 | 54 | 25 | 25 x 25 x 1,5 | 0,100 |
| 29400-1302012 | 30 | 26 | 122 | 46 | 30 | 30 x 30 x 2 | 0,107 |
Konstruktion
