Lineareinheiten

Artikelnummer: 29105

Produktinfo

Notera
Medium rotation speed range, self-locking. If using a position indicator, only use linear units with ball bearings.

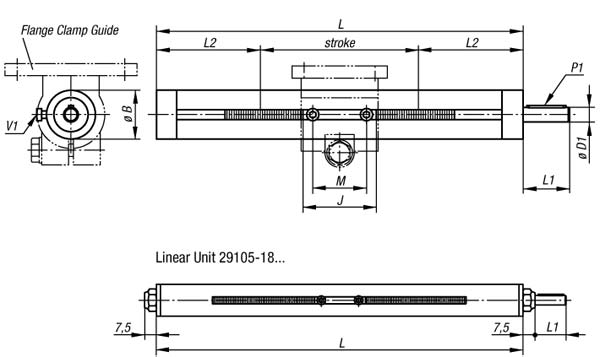

Order No.	Surface finish	Type E	Spindle	L Standard length	Stroke	B	J	L1	P1 feather to DIN 6885	V1	Approx. weight kg	D1	M	L2
29105-300001X300	slide bearing	30	Tr 14x3	300	100	30	38	26	2 x 2 x 20	M4x8	0,800	8 h8	28	100
29105-300001X500	slide bearing	30	Tr 14x3	500	300	30	38	26	2 x 2 x 20	M4x8	1,276	8 h8	28	100
29105-300001X800	slide bearing	30	Tr 14x3	800	600	30	38	26	2 x 2 x 20	M4x8	1,947	8 h8	28	100
29105-400001X300	slide bearing	40	Tr 20x4	300	91	40	55	38	4 x 4 x 32	M6x10	1,984	12 h8	44	104,5
29105-400001X500	slide bearing	40	Tr 20x4	500	291	40	55	38	4 x 4 x 32	M6x10	2,920	12 h8	44	104,5
29105-400001X800	slide bearing	40	Tr 20x4	800	591	40	55	38	4 x 4 x 32	M6x10	4,785	12 h8	44	104,5
29105-400001X1000	slide bearing	40	Tr 20x4	1000	791	40	55	38	4 x 4 x 32	M6x10	5,865	12 h8	44	104,5
29105-500001X500	slide bearing	50	Tr 20x4	500	265	50	63	38	4 x 4 x 32	M6x10	4,368	12 h8	44	85
29105-500001X800	slide bearing	50	Tr 20x4	800	565	50	63	38	4 x 4 x 32	M6x10	6,288	12 h8	44	117,5
29105-500001X1000	slide bearing	50	Tr 20x4	1000	765	50	63	38	4 x 4 x 32	M6x10	7,568	12 h8	44	117,5
29105-180101X300	ball bearing	18	Tr 10x2	300	145	18	24	17	2 x 2 x 12	M3x5	0,355	6 h9	18	77,5
29105-180101X500	ball bearing	18	Tr 10x2	500	345	18	24	17	2 x 2 x 12	M3x5	0,550	6 h9	18	77,5
29105-300101X300	ball bearing	30	Tr 14x3	300	100	30	38	26	2 x 2 x 20	M4x8	0,800	8 h8	28	100
29105-300101X500	ball bearing	30	Tr 14x3	500	300	30	38	26	2 x 2 x 20	M4x8	1,276	8 h8	28	100
29105-300101X800	ball bearing	30	Tr 14x3	800	600	30	38	26	2 x 2 x 20	M4x8	1,947	8 h8	28	100
29105-400101X300	ball bearing	40	Tr 20x4	300	91	40	55	38	4 x 4 x 32	M6x10	1,984	12 h8	44	104,5
29105-400101X500	ball bearing	40	Tr 20x4	500	291	40	55	38	4 x 4 x 32	M6x10	2,920	12 h8	44	104,5
29105-400101X800	ball bearing	40	Tr 20x4	800	591	40	55	38	4 x 4 x 32	M6x10	4,785	12 h8	44	104,5
29105-400101X1000	ball bearing	40	Tr 20x4	1000	791	40	55	38	4 x 4 x 32	M6x10	5,865	12 h8	44	104,5
29105-500101X500	ball bearing	50	Tr 20x4	500	265	50	63	38	4 x 4 x 32	M6x10	4,368	12 h8	44	117,5
29105-500101X800	ball bearing	50	Tr 20x4	800	565	50	63	38	4 x 4 x 32	M6x10	6,288	12 h8	44	117,5
29105-500101X1000	ball bearing	50	Tr 20x4	1000	765	50	63	38	4 x 4 x 32	M6x10	7,568	12 h8	44	117,5
