Spannverschlüsse einstellbar schwere Ausführung
Artikelnummer: 05560
Produktinfo
Material
Steel
Yta
Galvanized and blue chromated;
clamp Form B (welded), natural finish
Notera
Massive forged fasteners for heavy tensile load which are primarily used in utility vehicles and agricultural engine construction as well as in construction vehicles. In the locked state the fastener is secured against unintended release by means of a notch.
In order to compensate the tolerances or to create enough tension the hook clamp can be adjusted by means of a spindle (D1).
Please order the desired model of the clamp separately.

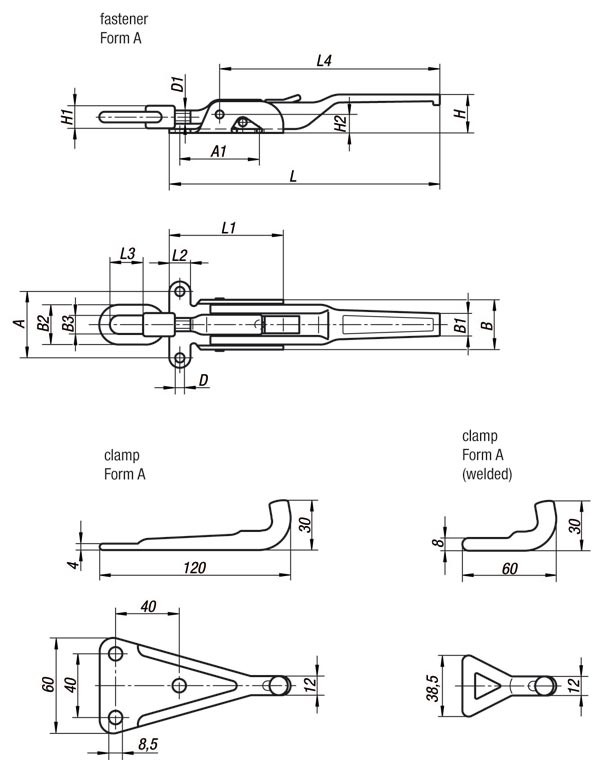

| Order No. | Form | A | A1 | B | B1 | B2 | B3 | D | D1 | H | H1 | H2 | L | L1 | L2 | L3 | L4 | Holding force F1 N | Approx. weight kg |
|---|
| 05560-1702041 | A | 50 | 62 | 37 | 18 | 30 | 14 | 7 | M10 | 30 | 17 | 14 | 204 | 86 | 16 | 25 | 165 | 40000 | 0,490 |
| 05560-1852371 | A | 65 | 82 | 50 | 20 | 36 | 15 | 8,5 | M14x1,5 | 32 | 20 | 18 | 237 | 104 | 21 | 40 | 190 | 40000 | 1,020 |
| Order No. | Form | Approx. weight kg |
|---|
| 05560-91851201 | A | 0,190 |
| 05560-92000601 | B | 0,085 |
Konstruktion
