Laschenklemmstücke mit Innenverzahnung_2
Artikelnummer: 29030
Produktinfo
Notera
Strap Clamps with internal toothing can be combined with Strap Clamps with external toothing (29026) to make a joint clamp.

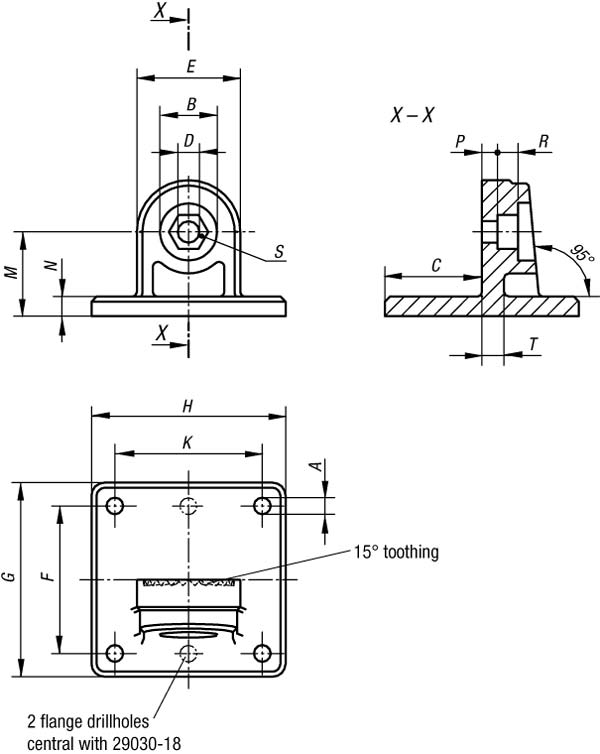

| Order No. | A | B | C | D | E | F | K | P | R | S | T | Approx. weight kg | G | H | M | N |
|---|
| 29030-18 | 5,3 (2x) | 15 | 25 | 6,1 | 25 | 40 | - | 4,5 | 5,5 | M6-DIN 985 | 5 | 0,017 | 50 | 35 | 20 | 5 |
| 29030-30 | 6,5 (4x) | 22 | 37,5 | 8,1 | 40 | 60 | 60 | 6,6 | 8,2 | M8-DIN 985 | 7 | 0,077 | 75 | 75 | 32,5 | 7,5 |
Konstruktion
