Laschenklemmstücke mit Außenverzahnung
Artikelnummer: 29026
Produktinfo
Notera
Strap Clamps with external toothing can be combined with Strap Clamps with internal toothing (29024, 29028 or 29030) to make a joint clamp.
The basic size for round tubes is Ø18 mm or Ø30 mm. If smaller tubes are to be clamped or converted from round to square tubes, these can be adjusted to the required fitting by means of Reducing Bushes 29042.

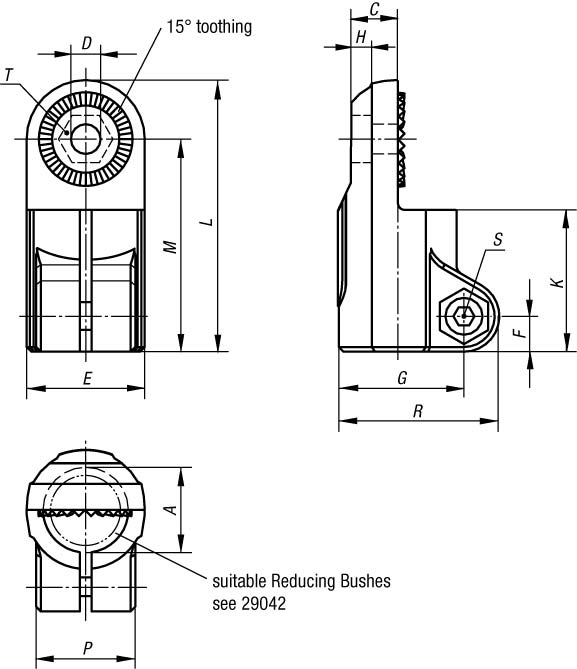

| Order No. | A | C | D | E | F | K | L | P | R | S | T | Approx. weight kg | G | H | M |
|---|
| 29026-18 | 18 | 9,9 | 6,1 | 25 | 7,5 | 30 | 57,5 | 21 | 34 | M6x18 | M6-DIN 985 | 0,028 | 26,5 | 5,9 | 45 |
| 29026-30 | 30 | 16,5 | 8,1 | 40 | 11 | 45 | 88 | 28,5 | 52,5 | M8x25 | M8-DIN 985 | 0,087 | 41,5 | 6,5 | 68 |
