Laschenklemmstücke mit Innenverzahnung
Artikelnummer: 29024
Produktinfo
Notera
Strap Clamps with internal toothing can be combined with Strap Clamps with external toothing (29026) to make a joint clamp.
The basic size for round tubes is Ø18 mm or Ø30 mm. If smaller tubes are to be clamped or converted from round to square tubes, these can be adjusted to the required fitting by means of Reducing Bushes 29042.

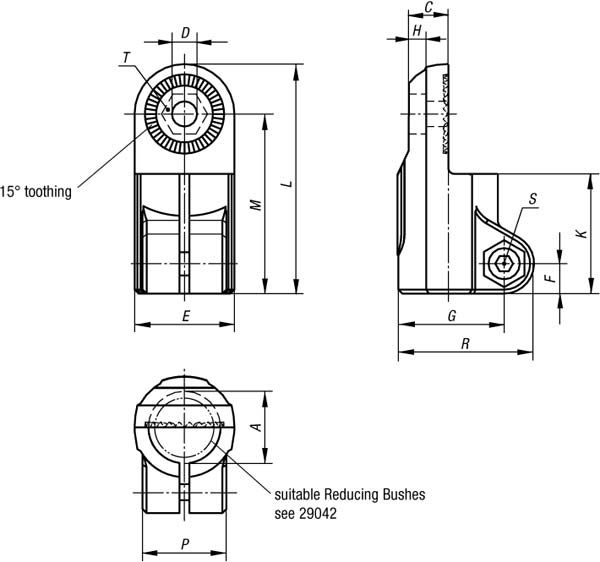

| Order No. | A | C | D | E | F | K | L | P | R | S | T | Approx. weight kg | G | H | M |
|---|
| 29024-18 | 18 | 9,9 | 6,1 | 25 | 7,5 | 30 | 57,5 | 21 | 34 | M6x18 | M6-DIN 985 | 0,028 | 26,5 | 5,9 | 45 |
| 29024-30 | 30 | 16,5 | 8,1 | 40 | 11 | 45 | 88 | 28,5 | 52,5 | M8x25 | M8-DIN 985 | 0,086 | 41,5 | 6,5 | 68 |
