Muffenklemmstücke
Artikelnummer: 29022
Produktinfo
Notera
The basic size for round tubes is Ø18 mm or Ø30 mm. If smaller tubes are to be clamped or converted from round to square tubes, these can be adjusted to the required fitting by means of Reducing Bushes 29042.

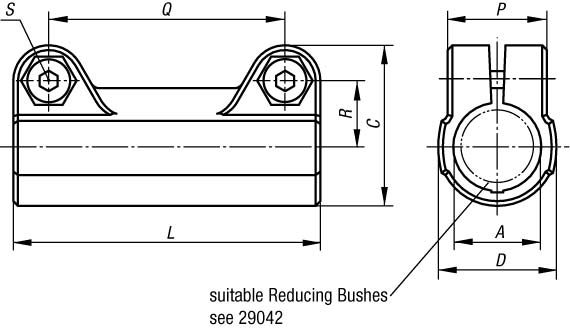

| Order No. | A | C | D | L | P | Q | R | S | Approx. weight kg |
|---|
| 29022-18 | 18 | 34 | 25 | 65 | 21 | 50 | 14 | M6x18 | 0,028 |
| 29022-30 | 30 | 52,5 | 40 | 95 | 28,5 | 73 | 22,8 | M8x25 | 0,087 |
Konstruktion
