Einpressstopfen mit Ölmessstab
Artikelnummer: 28048
Produktinfo
Notera
Temperature resistant with oil up to 100 °C, with water up to 70 °C.
| Order No. | Surface finish | D | D2 | L | L1 | S min. | drill-Ø D1 | drill-Ø ToleranceD1 | Approx. weight kg | Form |
|---|
| 28048-13018 | without ventilation | 30 | 23 | 14 | 14 | 8 | 18 | +0,1 | 0,028 | A |
| 28048-13020 | without ventilation | 30 | 24 | 14 | 15,5 | 8 | 20 | +0,1 | 0,028 | A |
| 28048-13026 | without ventilation | 30 | 30 | 14 | 16,5 | 9,5 | 26 | +0,1 | 0,030 | A |
| 28048-13030 | without ventilation | 30 | 34 | 14 | 17 | 9,5 | 30 | +0,1 | 0,032 | A |
| 28048-23018 | with ventilation | 30 | 23 | 14 | 14 | 8 | 18 | +0,1 | 0,028 | B |
| 28048-23020 | with ventilation | 30 | 24 | 14 | 15,5 | 8 | 20 | +0,1 | 0,028 | B |
| 28048-23026 | with ventilation | 30 | 30 | 14 | 16,5 | 9,5 | 26 | +0,1 | 0,030 | B |
| 28048-23030 | with ventilation | 30 | 34 | 14 | 17 | 9,5 | 30 | +0,1 | 0,032 | B |
| 28048-33018 | with ventilation and air filter | 30 | 23 | 14 | 14 | 8 | 18 | +0,1 | 0,028 | C |
| 28048-33020 | with ventilation and air filter | 30 | 24 | 14 | 15,5 | 8 | 20 | +0,1 | 0,028 | C |
| 28048-33026 | with ventilation and air filter | 30 | 30 | 14 | 16,5 | 9,5 | 26 | +0,1 | 0,030 | C |
| 28048-33030 | with ventilation and air filter | 30 | 34 | 14 | 17 | 9,5 | 30 | +0,1 | 0,032 | C |

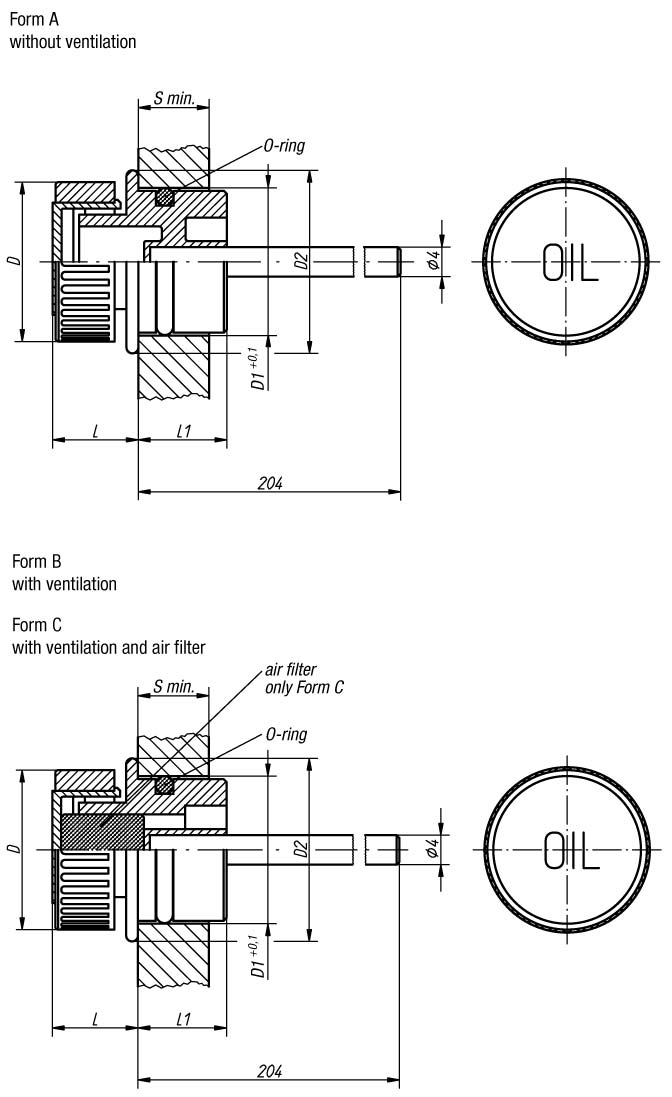

Konstruktion
