Ölschaugläser

Artikelnummer: 28004

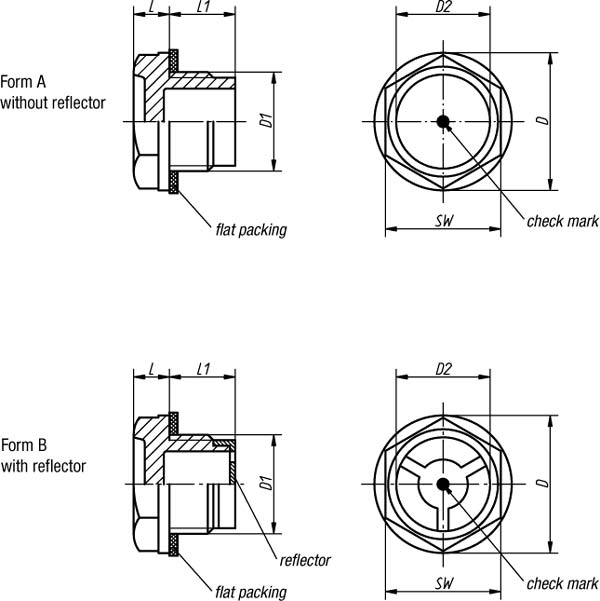

Order No.	Surface finish	D	D2	L	L1	SW	Approx. weight kg	D1	Tightening torque max. Nm	Form
28004-120014	without reflector	20	15	7	8	17	0,002	G 1/4	6	A
28004-122038	without reflector	22	14	6,5	10,5	18	0,004	G 3/8	8	A
28004-128012	without reflector	28	16	8	11	24	0,006	G 1/2	12	A
28004-135034	without reflector	35	21	8	12	30	0,008	G 3/4	16	A
28004-143100	without reflector	43	32	11	12	36	0,012	G 1	-	A
28004-151114	without reflector	51	33	10	16	42	0,020	G 1 1/4	-	A
28004-158112	without reflector	58	40	12	16	50	0,026	G 1 1/2	-	A
28004-174200	without reflector	74	48	12	22	64	0,052	G 2	-	A
28004-1201415	without reflector	20	15	7	8	17	0,002	M14x1,5	7	A
28004-1221615	without reflector	22	14	6,5	10	18	0,003	M16x1,5	8	A
28004-1251815	without reflector	25	16	7	10,5	21	0,003	M18x1,5	10	A
28004-1282015	without reflector	28	18	7,5	11	24	0,004	M20x1,5	16	A
28004-222038	with reflector	22	14	6,5	10,5	18	0,004	G 3/8	8	B
28004-228012	with reflector	28	16	8	11	24	0,006	G 1/2	12	B
28004-235034	with reflector	35	21	8	12	30	0,008	G 3/4	16	B
28004-243100	with reflector	43	32	11	12	36	0,012	G 1	-	B
28004-251114	with reflector	51	33	10	16	42	0,020	G 1 1/4	-	B
28004-258112	with reflector	58	40	12	16	50	0,026	G 1 1/2	-	B
28004-274200	with reflector	74	48	12	22	64	0,052	G 2	-	B
28004-2221615	with reflector	22	14	6,5	10	18	0,003	M16x1,5	8	B
28004-2251815	with reflector	25	16	7	10,5	21	0,003	M18x1,5	10	B
28004-2282015	with reflector	28	18	7,5	11	24	0,004	M20x1,5	16	B
