Ölstandsanzeiger_1

Artikelnummer: 28000_1

Produktinfo

Notera

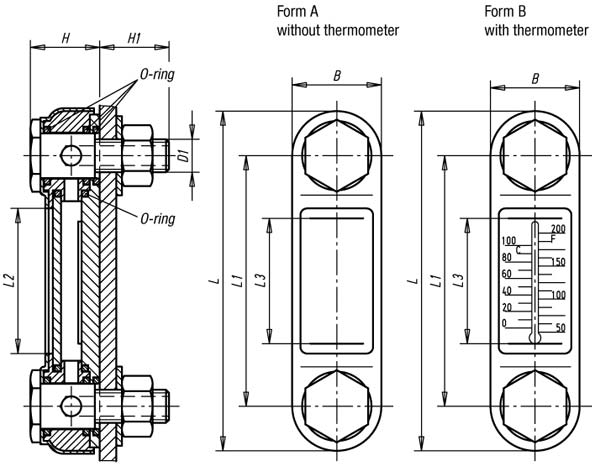

The Oil Level Gauges can either be fastened as shown in the illustration or directly in the threaded hole. Centre distance for the fastening holes = L1 ±0.5. The Oil Level Gauges are suitable for tanks operating without pressure. Maximum operating temperature: 100 °C. The versions 28000-125412 and 28000-225412 have a housing in aluminium.

Order No.	Surface finish	B	L	L1	L3	Number of fastening screws	Thermometer scale	Approx. weight kg	D1	H	H1	L2	Form
28000-107610	without thermometer	31	107	76	37	2	-	0,150	M10	21	17	39	A
28000-107612	without thermometer	31	107	76	37	2	-	0,150	M12	21	20	39	A
28000-112710	without thermometer	31	156	127	80	2	-	0,180	M10	21	17	90	A
28000-112712	without thermometer	31	156	127	80	2	-	0,180	M12	21	20	90	A
28000-125412	without thermometer	34	280	254	204	2	-	0,240	M12	26	27	213	A
28000-207610	with thermometer	31	107	76	37	2	0 - 100 °C / 50 - 200 °F	0,150	M10	21	17	39	B
28000-207612	with thermometer	31	107	76	37	2	0 - 100 °C / 50 - 200 °F	0,150	M12	21	20	39	B
28000-212710	with thermometer	31	156	127	80	2	0 - 100 °C / 50 - 200 °F	0,180	M10	21	17	90	B
28000-212712	with thermometer	31	156	127	80	2	0 - 100 °C / 50 - 200 °F	0,180	M12	21	20	90	B
28000-225412	with thermometer	34	280	254	204	2	-10 - 80 °C / 20 - 180 °F	0,240	M12	26	27	213	B
