Ölstandsanzeiger
Artikelnummer: 28000
Produktinfo
Notera

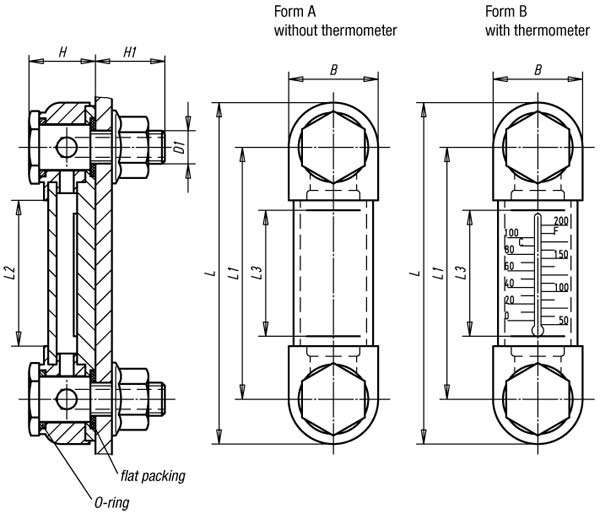

The Oil Level Gauges can either be fastened as shown in the illustration or directly in the threaded hole. Centre distance for the fastening holes = L1 ±0.5.
| Order No. | B | L | L1 | L3 | Number of fastening screws | Thermometer scale | Approx. weight kg | D1 | H | H1 | L2 | Surface finish | Form |
|---|
| 28000-1076 | 27 | 103 | 76 | 37 | 2 | - | 0,123 | M10 | 20 | 21 | 44 | without thermometer | A |
| 28000-1127 | 24 | 151 | 127 | 80 | 2 | - | 0,186 | M12 | 19 | 18 | 95 | without thermometer | A |
| 28000-1210 | 41 | 250 | 210 | 168 | 3 | - | 0,298 | M12 | 26 | 19 | 182 | without thermometer | A |
| 28000-2076 | 27 | 103 | 76 | 37 | 2 | 0 - 100 °C / 50 - 200 °F | 0,123 | M10 | 20 | 21 | 44 | with thermometer | B |
| 28000-2127 | 24 | 151 | 127 | 80 | 2 | 0 - 100 °C / 50 - 200 °F | 0,186 | M12 | 19 | 18 | 95 | with thermometer | B |
