Scharniere aus Kunststoff, mit Rastfunktion
Artikelnummer: 27857
Produktinfo
Material
Hinge and coverings, glass-fibre reinforced thermoplastic PA;
axle in stainless steel
Yta
Hinge and coverings black;
axle natural finish
Notera
The hinges are equipped with a catching function. It catches in four positions and holds doors and covers open and tightly closed. The hinges are available with or without guide tabs for aluminium profiles.
| Order No. | A1 | A2 | A3 | A4 | Guide tabs for slot | Load bearing capacity N | Approx. weight kg |
|---|
| 27857-56181800 | 17,75 | 17,75 | 27 | 27 | - | 1200 | 0,073 |
| 27857-56181806 | 17,75 | 17,75 | 27 | 27 | 6 | 1200 | 0,073 |
| 27857-56181808 | 17,75 | 17,75 | 27 | 27 | 8 | 1200 | 0,073 |
| 27857-56232300 | 22,75 | 22,75 | 36,75 | 36,75 | - | 1200 | 0,093 |
| 27857-56232308 | 22,75 | 22,75 | 36,75 | 36,75 | 8 | 1200 | 0,093 |
| 27857-56232310 | 22,75 | 22,75 | 36,75 | 36,75 | 10 | 1200 | 0,093 |

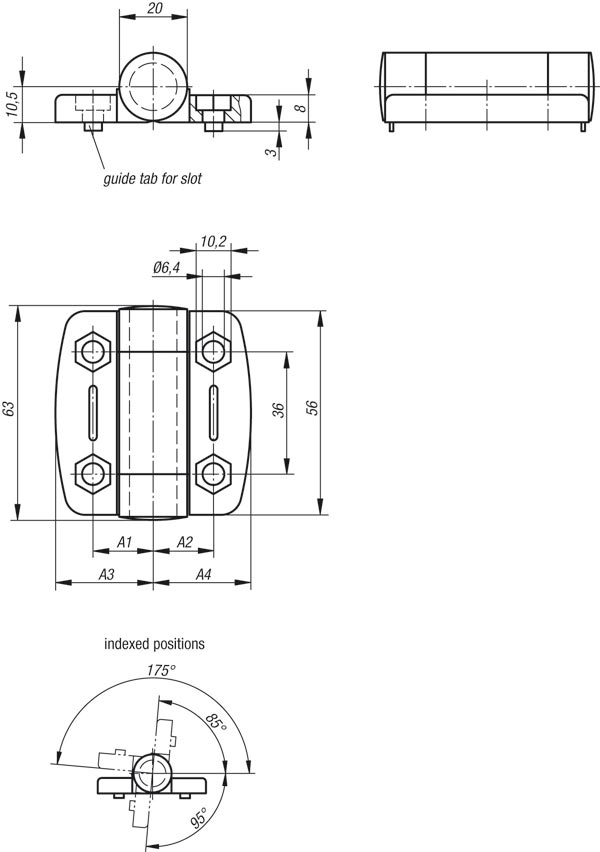

Konstruktion
