Scharniere aus Kunststoff mit Klemmfunktion
Artikelnummer: 27853
Produktinfo
Material
Thermoplastic hinge glass-fibre reinforced; axle in steel; clamping lever glass-fibre reinforced thermoplastic; mechanics in steel
Yta
Hinge black; axle galvanized; clamping lever black; mechanics black galvanized
Notera
The hinges can be clamped in every position due to adjustable clamping lever.
| Order No. | A1 | A2 | A3 | A4 | Load bearing capacity N | Approx. weight kg |
|---|
| 27853-251515 | 15 | 15 | 26 | 26 | 1200 | 0,043 |
| 27853-301818 | 17,5 | 17,5 | 29,5 | 29,5 | 1200 | 0,047 |
| 27853-352020 | 20 | 20 | 36 | 36 | 1200 | 0,051 |
| 27853-402323 | 22,5 | 22,5 | 38,5 | 38,5 | 1200 | 0,055 |
| 27853-452525 | 25 | 25 | 43,5 | 43,5 | 1200 | 0,057 |
| 27853-502828 | 27,5 | 27,5 | 48,5 | 48,5 | 1200 | 0,062 |
| 27853-603333 | 32,5 | 32,5 | 57,5 | 57,5 | 1200 | 0,067 |

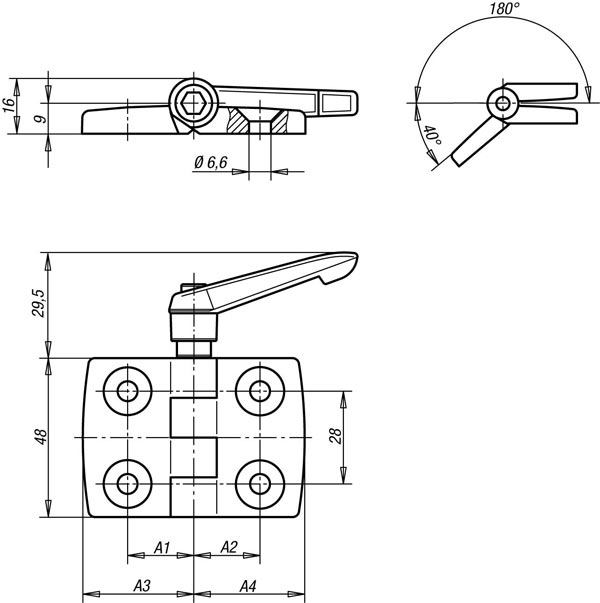

Konstruktion
