Gerätefüße höhenverstellbar
Artikelnummer: 27841
Produktinfo
Notera

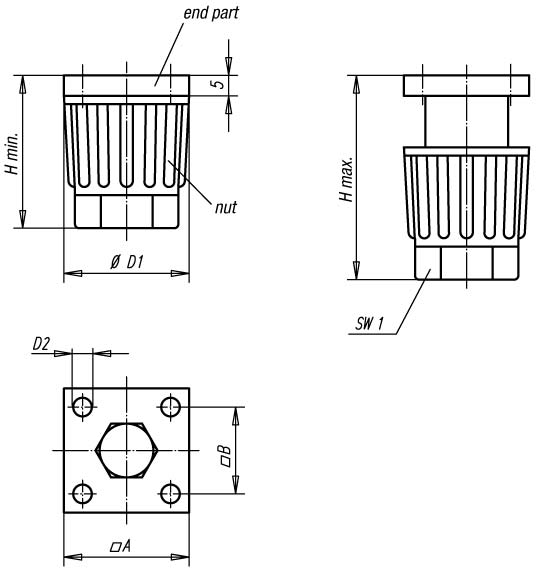

With its flat end part and the countersunk hexagon head screw, the equipment foot is ideal for mounting on smooth surfaces.
The equipment foot height can be infinitely adjusted by turning the nut by hand or tool.
| Order No. | A | B | D2 for countersunk screw | SW1 | Load capacity max. kN | H min. - max. | Approx. weight kg | D1 |
|---|
| 27841-3004 | 30 | 20,5 | M4 | 22 | 1,5 | 35-50 | 0,045 | 30 |
| 27841-4006 | 40 | 28 | M6 | 30 | 1,5 | 45-65 | 0,081 | 40 |
