Gerätefüße höhenverstellbar für Aluminium-Profile
Artikelnummer: 27840
Produktinfo
Notera

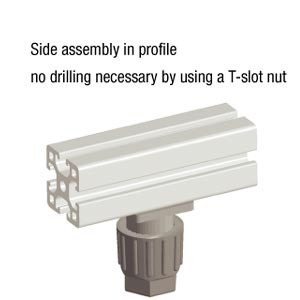

Equipment Feet are particularly suitable for tables and lighter installations. The equipment foot height can be infinitely adjusted by turning the nut by hand or tool. The pins at the bottom centre of the equipment foot secure it against torsion. Equipment Feet can be secured on aluminium profiles without costly drilling by using a nut for T-slots.

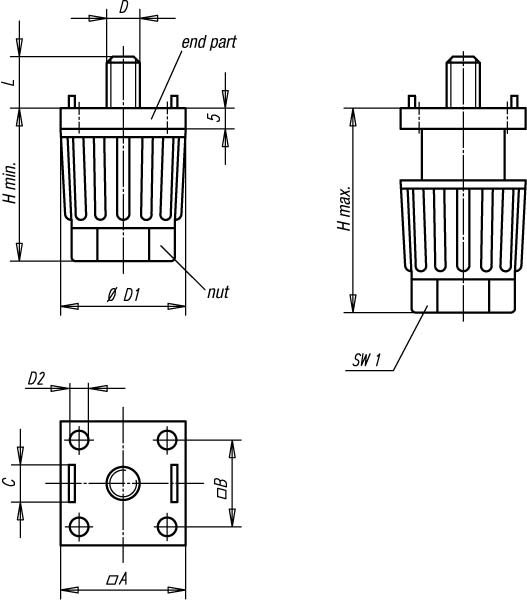

| Order No. | A for aluminium profile | B | C for slot | D | D2 for countersunk screw | L | SW1 | Load capacity max. kN | H min. - max. | Approx. weight kg | D1 |
|---|
| 27840-300805 | 30 | 20,5 | 8 | M5 | M4 | 14 | 22 | 1,5 | 35-50 | 0,040 | 30 |
| 27840-300806 | 30 | 20,5 | 8 | M6 | M4 | 14 | 22 | 1,5 | 35-50 | 0,040 | 30 |
| 27840-300808 | 30 | 20,5 | 8 | M8 | M4 | 14 | 22 | 1,5 | 35-50 | 0,040 | 30 |
| 27840-301005 | 30 | 20,5 | 10 | M5 | M4 | 14 | 22 | 1,5 | 35-50 | 0,040 | 30 |
| 27840-301006 | 30 | 20,5 | 10 | M6 | M4 | 14 | 22 | 1,5 | 35-50 | 0,040 | 30 |
| 27840-301008 | 30 | 20,5 | 10 | M8 | M4 | 14 | 22 | 1,5 | 35-50 | 0,040 | 30 |
| 27840-400806 | 40 | 28 | 8 | M6 | M6 | 14 | 30 | 1,5 | 45-65 | 0,078 | 40 |
| 27840-400808 | 40 | 28 | 8 | M8 | M6 | 14 | 30 | 1,5 | 45-65 | 0,078 | 40 |
| 27840-401006 | 40 | 28 | 10 | M6 | M6 | 14 | 30 | 1,5 | 45-65 | 0,078 | 40 |
| 27840-401008 | 40 | 28 | 10 | M8 | M6 | 14 | 30 | 1,5 | 45-65 | 0,078 | 40 |
