Teller für Stellfüße ECO-Line aus Zinkdruckguss, Nirosta oder Kunststoff
Artikelnummer: 27830
Produktinfo
Material
Plate in thermoplastic, die cast zinc or stainless steel 1.4305,
anti-slip-plate in thermoplastic elastomer
Yta
Plate in black thermoplastic, plate in blue galvanized die cast zinc, plate in stainless steel natural finish
Notera
Swivel Feet ECO-Line consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle.
The Anti-Slip-Plate absorbs vibrations and prevents slipping of the Swivel Foot.
For matching threaded spindles see 27832.
| Order No. | Material | Surface finish | D | Load capacity max. kN | Approx. weight kg | Form | H |
|---|
| 27830-10301 | die cast zinc | plate for swivel feet ECO-line | 30 | 16 | 0,020 | A | 11,5 |
| 27830-10401 | die cast zinc | plate for swivel feet ECO-line | 40 | 18 | 0,038 | A | 12 |
| 27830-10501 | die cast zinc | plate for swivel feet ECO-line | 50 | 20 | 0,060 | A | 14,5 |
| 27830-20301 | die cast zinc | plate for swivel feet ECO-line | 30 | 16 | 0,024 | B | 13,5 |
| 27830-20401 | die cast zinc | plate for swivel feet ECO-line | 40 | 18 | 0,044 | B | 14,5 |
| 27830-20501 | die cast zinc | plate for swivel feet ECO-line | 50 | 20 | 0,070 | B | 17,5 |
| Order No. | Material | Surface finish | D | Load capacity max. kN | Approx. weight kg | Price_Nox | Form | H |
|---|
| 27830-10302 | stainless steel | plate for swivel feet ECO-line | 30 | 22 | 0,020 | 4,93 | A | 11,5 |
| 27830-10402 | stainless steel | plate for swivel feet ECO-line | 40 | 24 | 0,038 | 6,59 | A | 12 |
| 27830-10502 | stainless steel | plate for swivel feet ECO-line | 50 | 26 | 0,060 | 8,23 | A | 14,5 |
| 27830-20302 | stainless steel | plate for swivel feet ECO-line | 30 | 22 | 0,024 | 5,33 | B | 13,5 |
| 27830-20402 | stainless steel | plate for swivel feet ECO-line | 40 | 24 | 0,044 | 7,04 | B | 14,5 |
| 27830-20502 | stainless steel | plate for swivel feet ECO-line | 50 | 26 | 0,070 | 8,73 | B | 17,5 |
| Order No. | Material | Surface finish | D | Load capacity max. kN | Approx. weight kg | Form | H |
|---|
| 27830-10303 | plastic | plate for swivel feet ECO-line | 30 | 15 | 0,005 | A | 11,5 |
| 27830-10403 | plastic | plate for swivel feet ECO-line | 40 | 15 | 0,008 | A | 12 |
| 27830-10503 | plastic | plate for swivel feet ECO-line | 50 | 15 | 0,016 | A | 14,5 |
| 27830-20303 | plastic | plate for swivel feet ECO-line | 30 | 15 | 0,009 | B | 13,5 |
| 27830-20403 | plastic | plate for swivel feet ECO-line | 40 | 15 | 0,014 | B | 14,5 |
| 27830-20503 | plastic | plate for swivel feet ECO-line | 50 | 15 | 0,026 | B | 17,5 |

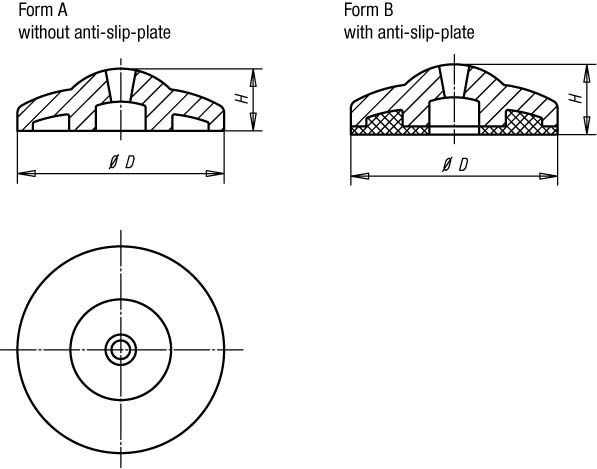

Konstruktion
