Gewindespindeln für Stellfüße, Stahl oder Nirosta

Artikelnummer: 27828

Gewindespindeln für Stellfüße, Stahl oder Nirosta

Produktinfo

Material
Steel or stainless steel 1.4305

Yta
Steel blue chromated; stainless steel, natural finish

Notera
Swivel Feet consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle. The height of the complete Swivel Foot is calculated from the length of the threaded spindle + 30 mm. (total height of Swivel Foot = L + 30 mm)

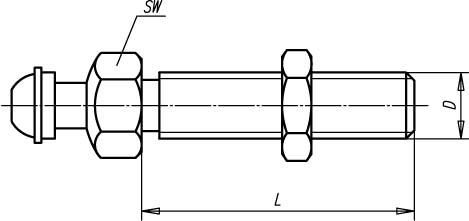

Order No.MaterialDLSWApprox. weight kgLoad capacity max. kN
27828-120661steelM1266220,0707,7
27828-121001steelM12100220,0947,7
27828-121251steelM12125220,1277,7
27828-121501steelM12150220,1307,7
27828-160661steelM1666220,11214,5
27828-161001steelM16100220,15214,5
27828-161251steelM16125220,17314,5
27828-161501steelM16150220,23514,5
27828-162001steelM16200220,31514,5
27828-201001steelM20100220,23724,3
27828-201251steelM20125220,25524,3
27828-201501steelM20150220,34124,3
27828-202001steelM20200220,44724,3
27828-120662stainless steelM1266220,0707,7
27828-121002stainless steelM12100220,0947,7
27828-121252stainless steelM12125220,1277,7
27828-121502stainless steelM12150220,1307,7
27828-160662stainless steelM1666220,11214,5
27828-161002stainless steelM16100220,15214,5
27828-161252stainless steelM16125220,17314,5
27828-161502stainless steelM16150220,23514,5
27828-162002stainless steelM16200220,31514,5
27828-201002stainless steelM20100220,23724,3
27828-201252stainless steelM20125220,25524,3
27828-201502stainless steelM20150220,34124,3
27828-202002stainless steelM20200220,44724,3

Konstruktion
