Teller für Stellfüße, Kunststoff
Artikelnummer: 27815
Produktinfo
Material
Plates, thermoplastic, glass-fibre reinforced.
Anti-slip-plate in thermoplastic elastomer
Yta
Black
Notera
Swivel Feet consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle.
The Anti-Slip-Plate absorbs vibrations and prevents slipping of the Swivel Foot.
For matching threaded spindles see 27828.
Order No. | D | A | Load capacity max. kN | Approx. weight kg | Form |
27815-1060 | 60 | - | 12 | 0,027 | A |
27815-1080 | 80 | - | 12 | 0,052 | A |
27815-1100 | 100 | - | 12 | 0,084 | A |
27815-2060 | 60 | - | 12 | 0,039 | B |
27815-2080 | 80 | - | 12 | 0,075 | B |
27815-2100 | 100 | - | 12 | 0,121 | B |
Order No. | D | A | Load capacity max. kN | Approx. weight kg | Form |
27815-3080 | 80 | 55 | 12 | 0,052 | C |
27815-3100 | 100 | 74 | 12 | 0,087 | C |
27815-4080 | 80 | 55 | 12 | 0,075 | D |
27815-4100 | 100 | 74 | 12 | 0,124 | D |
27815-5080 | 80 | 55 | 12 | 0,051 | E |
27815-5100 | 100 | 74 | 12 | 0,085 | E |
27815-6080 | 80 | 55 | 12 | 0,074 | F |
27815-6100 | 100 | 74 | 12 | 0,122 | F |

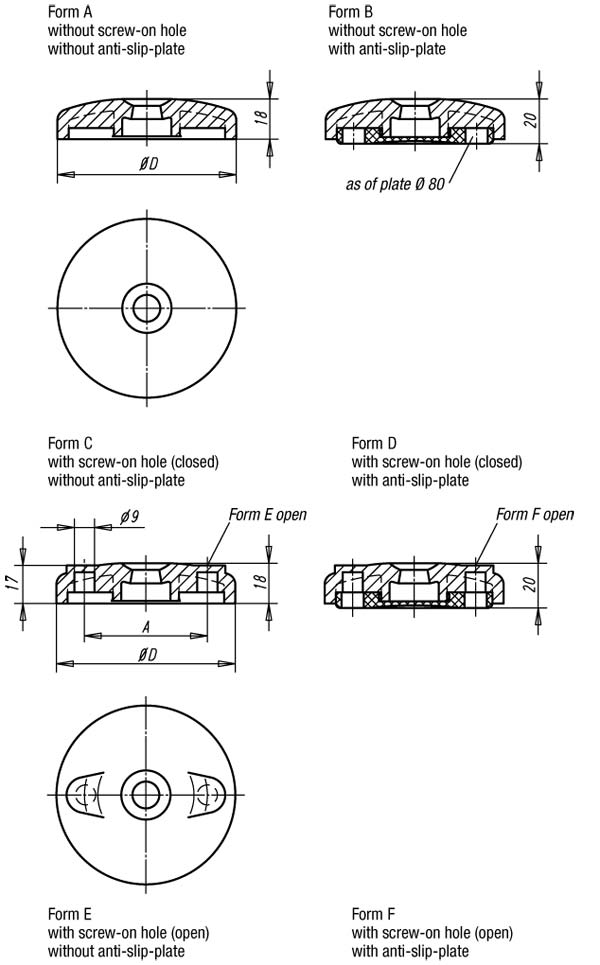

Konstruktion
![](Bilder-Zeichnungen/Z27815.jpg)
