Kugelköpfe mit Innengewinde
Artikelnummer: 27811
Produktinfo
Material
Steel or stainless steel 1.4301.
Yta
Steel blue chromated; stainless steel, natural finish
Notera

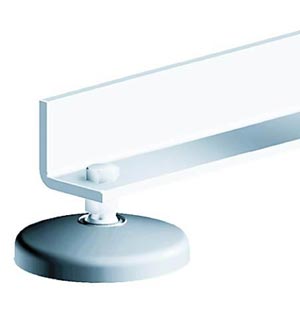

For direct fastening of swivel pads by standard screws.
Swivel Pads consist of a ball joint and a plate. Any ball joint can be combined with any plate.
The height of the complete Swivel Pad is calculated from the height of hexagon + 22,5 mm.
(Overall height of Swivel Pad = L1 + 22,5 mm)
| Order No. | Material | D | L1 | Approx. weight kg | T |
|---|
| 27811-061 | steel | M6 | 7,5 | 0,020 | 10 |
| 27811-062 | stainless steel | M6 | 7,5 | 0,020 | 10 |
| 27811-081 | steel | M8 | 7,5 | 0,020 | 10 |
| 27811-082 | stainless steel | M8 | 7,5 | 0,020 | 10 |

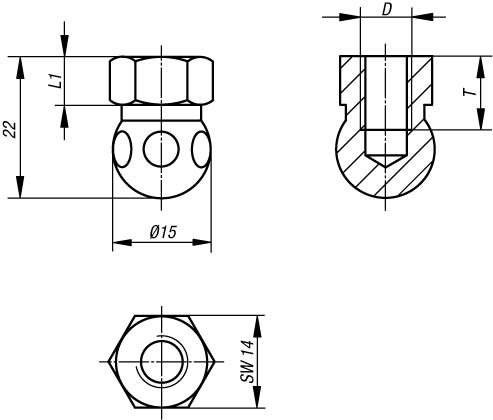

Konstruktion
