Füße mit Schwingungsdämpfung
Artikelnummer: 27808
Produktinfo
Material
Plate steel,
damper plate PUR elastomere (Sylomer V12)
Yta
Plate blue chromated;
damper plate grey, fixed, cannot slip;
range of use from -30 °C to +70 °C
Notera
The manageable load given in the table is a recommendation of the permanent static load up to which the absorption unit should be used.
This static load corresponds to a pressure per area of 0.4 N/mm², at which the material reaches its optimum absorption properties. Here it is taken into account that under dynamic demands an additional load, up to 0.6 N/mm² may occur.
The damper plate absorbs vibrations and prevents slipping of the Locating Foot.

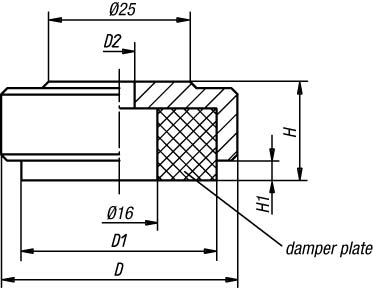

| Order No. | D | D2 | H1 (under pressure of 0 / 0.4 / 0.6 N/mm²) | Load capacity (under pressure of 0.4 N/mm²) N | D1 | H |
|---|
| 27808-036 | 36 | 5,5 | 4 / 2,8 / 1,9 | 212 | 30,5 | 15 |
| 27808-046 | 46 | 6,6 | 4 / 2,8 / 1,9 | 435 | 40,5 | 17 |
| 27808-056 | 56 | 9 | 4 / 2,8 / 1,9 | 705 | 50 | 19 |
| 27808-074 | 74 | 9 | 4 / 2,8 / 1,9 | 1372 | 68 | 21 |
Konstruktion
