Teller für Gelenkfüße mit Schwingungsdämpfung

Produktinfo

Material
Plate in die cast zinc or stainless steel 1.4305, damper plate PUR elastomere (Sylomer V12)

Yta
Plate in die cast zinc, black powder-coated; plate in stainless steel, natural finish; damper plate grey, fixed, cannot slip; range of use from -30 °C to +70 °C

Notera

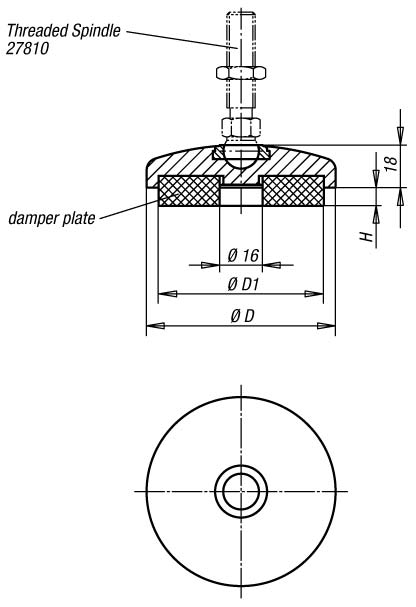

The manageable load given in the table is a recommendation of the permanent static load up to which the absorption unit should be used. This static load corresponds to a pressure per area of 0.4 N/mm², at which the material reaches its optimum absorption properties. Here it is taken into account that under dynamic demands an additional load, up to 0.6 N/mm² may occur. The damper plate absorbs vibrations and prevents slipping of the Swivel Pad. Swivel Pads consist of a plate and a threaded spindle resp. a ball joint. Any plate can be combined with any threaded spindle resp. any ball joint. For matching threaded spindles see 27810. For matching ball joints see 27811.
