Teller für Gelenkfüße aus Nirosta
Artikelnummer: 27803
Produktinfo
Material
Plates, stainless steel 1.4301.
Core, thermoplastic PA.
Rubber support TPE.
Yta
Plate natural finish;
light grey rubber support with sealing lip, hardness 70 Shore A;
range of use from -20 °C to +100 °C
Notera
The stainless steel plates excel in that the rubber support combined with the stainless steel plates and the PA core is sprayed. The rubber support is resistant to oil and water (up to 60 °C). In addition, it is furnished with antibacterial and antimicrobial protection and is thus outstandingly suited for sectors in the foods industry.
Swivel Pads consist of a plate and a threaded spindle resp. a ball joint. Any plate can be combined with any threaded spindle resp. any ball joint.
For matching threaded spindles see 27810.
For matching ball joints see 27811.

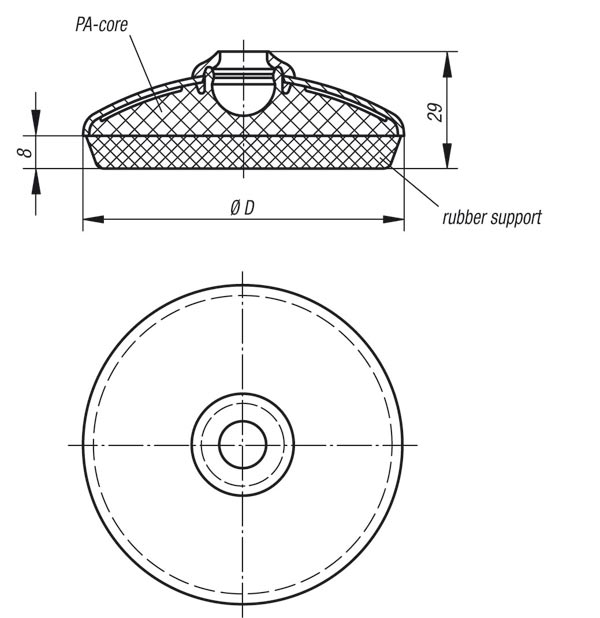

| Order No. | D | Load capacity max. kN | Approx. weight kg | Price_Nox |
|---|
| 27803-1060 | 58,5 | 7 | 0,075 | 5,90 |
| 27803-1080 | 78,5 | 7 | 0,150 | 6,96 |
| 27803-1100 | 98,5 | 7 | 0,220 | 11,66 |
