Teller für Gelenkfüße, Kunststoff
Artikelnummer: 27800
Produktinfo
Material
Plates, thermoplastic, glass-fibre reinforced.
Anti-slip-plate in thermoplastic elastomer
Yta
Black
Notera
Swivel Pads consist of a plate and a threaded spindle resp. a ball joint. Any plate can be combined with any threaded spindle resp. any ball joint.
The Anti-Slip-Plate absorbs vibrations and prevents slipping of the Swivel Pad.
For matching threaded spindles see 27810.
For matching ball joints see 27811.
Order No. | D | Load capacity max. kN | Approx. weight kg | Form |
27800-1030 | 30 | 5 | 0,008 | A |
27800-1040 | 40 | 9 | 0,013 | A |
27800-1045 | 45 | 9 | 0,015 | A |
27800-1050 | 50 | 9 | 0,016 | A |
27800-1060 | 60 | 9 | 0,022 | A |
27800-1080 | 80 | 9 | 0,044 | A |
27800-1100 | 100 | 9 | 0,084 | A |
27800-2030 | 30 | 5 | 0,010 | B |
27800-2040 | 40 | 9 | 0,017 | B |
27800-2045 | 45 | 9 | 0,021 | B |
27800-2050 | 50 | 9 | 0,024 | B |
27800-2060 | 60 | 9 | 0,034 | B |
27800-2080 | 80 | 9 | 0,067 | B |
27800-2100 | 100 | 9 | 0,121 | B |
Order No. | D | A | Load capacity max. kN | Approx. weight kg | Form |
27800-3080 | 80 | 55 | 9 | 0,046 | C |
27800-3100 | 100 | 74 | 9 | 0,086 | C |
27800-3120 | 120 | 94 | 9 | 0,104 | C |
27800-4080 | 80 | 55 | 9 | 0,069 | D |
27800-4100 | 100 | 74 | 9 | 0,123 | D |
27800-4120 | 120 | 94 | 9 | 0,164 | D |

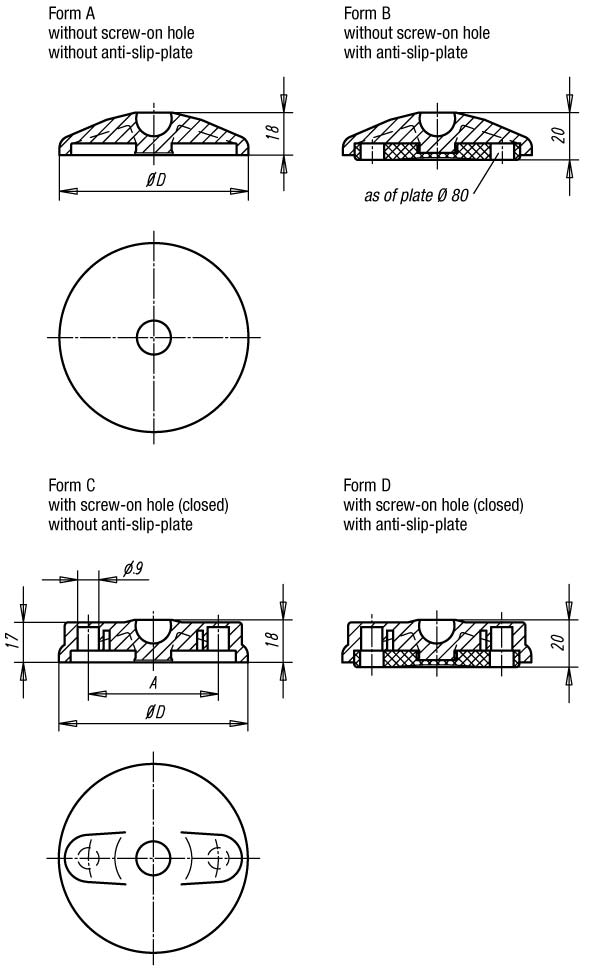

Konstruktion
![](Bilder-Zeichnungen/Z27800-1030Nox.jpg)
![](Bilder-Zeichnungen/Z27800.jpg)
