Montageplatten
Artikelnummer: 21944
Produktinfo
Notera

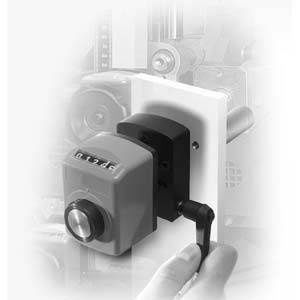

Mounting Plates form a compact unit in combination with position indicators. They guarantee reliable spindle clamping without additional construction work.
Because of simple mounting as an insertion plate, the mounting plate is also very suitable for subsequent fitting out of existing equipment.
By squeezing the bush, the diameter for the torque support can be expanded from Ø6.2 to Ø10.1.

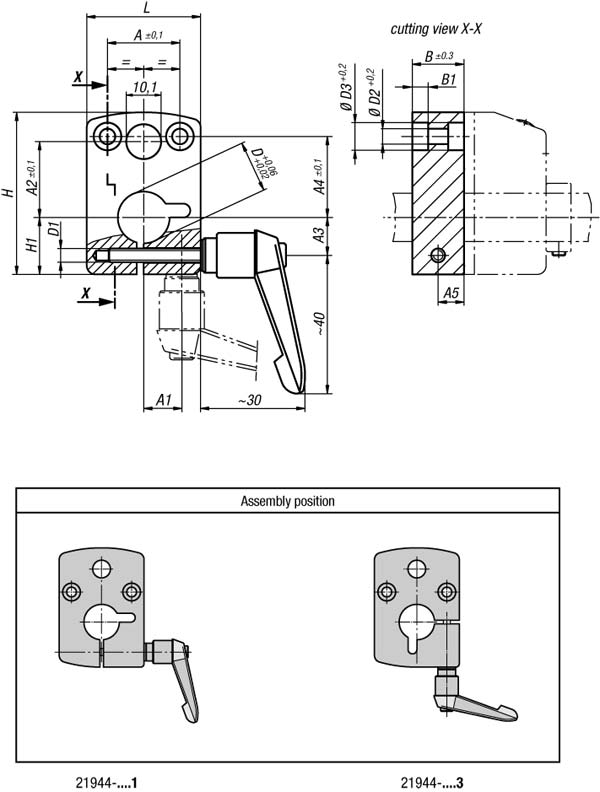

| Order No. | Surface finish | A | A1 | A2 | A3 | A4 | A5 | B | B1 | D | D2 | D3 | L | Suitable for Position Indicator | D1 | H | H1 |
|---|
| 21944-04081 | assembly position 1 | 21 | 11 | 22 | 11 | 23,5 | 7,5 | 15 | 4,6 | 8 | 4,5 | 8 | 33 | 21902 | M4 | 47 | 16,5 |
| 21944-04101 | assembly position 1 | 21 | 11 | 22 | 11 | 23,5 | 7,5 | 15 | 4,6 | 10 | 4,5 | 8 | 33 | 21902 | M4 | 47 | 16,5 |
| 21944-04121 | assembly position 1 | 21 | 11 | 22 | 11 | 23,5 | 7,5 | 15 | 4,6 | 12 | 4,5 | 8 | 33 | 21902 | M4 | 47 | 16,5 |
| 21944-04141 | assembly position 1 | 21 | 11 | 22 | 11 | 23,5 | 7,5 | 15 | 4,6 | 14 | 4,5 | 8 | 33 | 21902 | M4 | 47 | 16,5 |
| 21944-09121 | assembly position 1 | 34 | 17 | 30 | 17 | 17 | 10 | 20 | 5,5 | 12 | 5,5 | 10 | 48 | 21904 | M5 | 67,5 | 25,5 |
| 21944-09141 | assembly position 1 | 34 | 17 | 30 | 17 | 17 | 10 | 20 | 5,5 | 14 | 5,5 | 10 | 48 | 21904 | M5 | 67,5 | 25,5 |
| 21944-09161 | assembly position 1 | 34 | 17 | 30 | 17 | 17 | 10 | 20 | 5,5 | 16 | 5,5 | 10 | 48 | 21904 | M5 | 67,5 | 25,5 |
| 21944-09181 | assembly position 1 | 34 | 17 | 30 | 17 | 17 | 10 | 20 | 5,5 | 18 | 5,5 | 10 | 48 | 21904 | M5 | 67,5 | 25,5 |
| 21944-09201 | assembly position 1 | 34 | 17 | 30 | 17 | 17 | 10 | 20 | 5,5 | 20 | 5,5 | 10 | 48 | 21904 | M5 | 67,5 | 25,5 |
| 21944-04083 | assembly position 3 | 21 | 11 | 22 | 11 | 23,5 | 7,5 | 15 | 4,6 | 8 | 4,5 | 8 | 33 | 21902 | M4 | 47 | 16,5 |
| 21944-04103 | assembly position 3 | 21 | 11 | 22 | 11 | 23,5 | 7,5 | 15 | 4,6 | 10 | 4,5 | 8 | 33 | 21902 | M4 | 47 | 16,5 |
| 21944-04123 | assembly position 3 | 21 | 11 | 22 | 11 | 23,5 | 7,5 | 15 | 4,6 | 12 | 4,5 | 8 | 33 | 21902 | M4 | 47 | 16,5 |
| 21944-04143 | assembly position 3 | 21 | 11 | 22 | 11 | 23,5 | 7,5 | 15 | 4,6 | 14 | 4,5 | 8 | 33 | 21902 | M4 | 47 | 16,5 |
| 21944-09123 | assembly position 3 | 34 | 17 | 30 | 17 | 17 | 10 | 20 | 5,5 | 12 | 5,5 | 10 | 48 | 21904 | M5 | 67,5 | 25,5 |
| 21944-09143 | assembly position 3 | 34 | 17 | 30 | 17 | 17 | 10 | 20 | 5,5 | 14 | 5,5 | 10 | 48 | 21904 | M5 | 67,5 | 25,5 |
| 21944-09163 | assembly position 3 | 34 | 17 | 30 | 17 | 17 | 10 | 20 | 5,5 | 16 | 5,5 | 10 | 48 | 21904 | M5 | 67,5 | 25,5 |
| 21944-09183 | assembly position 3 | 34 | 17 | 30 | 17 | 17 | 10 | 20 | 5,5 | 18 | 5,5 | 10 | 48 | 21904 | M5 | 67,5 | 25,5 |
| 21944-09203 | assembly position 3 | 34 | 17 | 30 | 17 | 17 | 10 | 20 | 5,5 | 20 | 5,5 | 10 | 48 | 21904 | M5 | 67,5 | 25,5 |
Konstruktion
