Gewindestifte mit Einschraub-Stopp zum Einkleben
Artikelnummer: 07670
Produktinfo
Material
Steel or stainless steel 1.4305
Yta
Steel blue chromated, stainless steel natural finish
Notera
These products have been designed especially so that grub screws can be glued up to the screw-in stop. They allow mechanical connecting elements with external thread to be made cost-effectively for small and medium-sized series.
The LOCTITE products 638 and 648 (see 97990) have proven themselves in practice as a successful bonding agent.

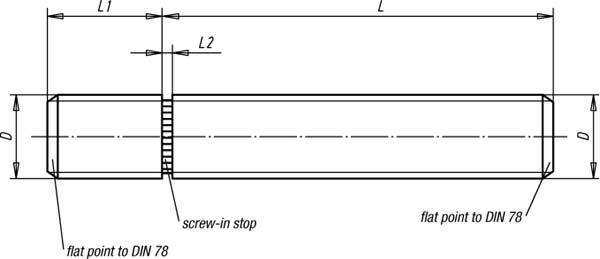

Order No. | Material | Surface finish | D | L | L1 | Approx. weight kg | L2 |
07670-1040201 | steel | flat point to DIN 78 | M4 | 20 | 6 | 0,002 | 1 |
07670-1040301 | steel | flat point to DIN 78 | M4 | 30 | 6 | 0,003 | 1 |
07670-1040401 | steel | flat point to DIN 78 | M4 | 40 | 6 | 0,004 | 1 |
07670-1040501 | steel | flat point to DIN 78 | M4 | 50 | 6 | 0,005 | 1 |
07670-1050201 | steel | flat point to DIN 78 | M5 | 20 | 8 | 0,003 | 1 |
07670-1050301 | steel | flat point to DIN 78 | M5 | 30 | 8 | 0,004 | 1 |
07670-1050401 | steel | flat point to DIN 78 | M5 | 40 | 8 | 0,006 | 1 |
07670-1050501 | steel | flat point to DIN 78 | M5 | 50 | 8 | 0,007 | 1 |
07670-1050601 | steel | flat point to DIN 78 | M5 | 60 | 8 | 0,008 | 1 |
07670-1060201 | steel | flat point to DIN 78 | M6 | 20 | 9 | 0,004 | 1,5 |
07670-1060301 | steel | flat point to DIN 78 | M6 | 30 | 9 | 0,007 | 1,5 |
07670-1060401 | steel | flat point to DIN 78 | M6 | 40 | 9 | 0,008 | 1,5 |
07670-1060501 | steel | flat point to DIN 78 | M6 | 50 | 9 | 0,009 | 1,5 |
07670-1060601 | steel | flat point to DIN 78 | M6 | 60 | 9 | 0,011 | 1,5 |
07670-1080201 | steel | flat point to DIN 78 | M8 | 20 | 12 | 0,009 | 1,5 |
07670-1080301 | steel | flat point to DIN 78 | M8 | 30 | 12 | 0,012 | 1,5 |
07670-1080401 | steel | flat point to DIN 78 | M8 | 40 | 12 | 0,015 | 1,5 |
07670-1080501 | steel | flat point to DIN 78 | M8 | 50 | 12 | 0,018 | 1,5 |
07670-1080601 | steel | flat point to DIN 78 | M8 | 60 | 12 | 0,022 | 1,5 |
07670-1080801 | steel | flat point to DIN 78 | M8 | 80 | 12 | 0,027 | 1,5 |
07670-1100201 | steel | flat point to DIN 78 | M10 | 20 | 14 | 0,014 | 2 |
07670-1100301 | steel | flat point to DIN 78 | M10 | 30 | 14 | 0,019 | 2 |
07670-1100401 | steel | flat point to DIN 78 | M10 | 40 | 14 | 0,024 | 2 |
07670-1100501 | steel | flat point to DIN 78 | M10 | 50 | 14 | 0,029 | 2 |
07670-1100601 | steel | flat point to DIN 78 | M10 | 60 | 14 | 0,034 | 2 |
07670-1100801 | steel | flat point to DIN 78 | M10 | 80 | 14 | 0,044 | 2 |
07670-1120301 | steel | flat point to DIN 78 | M12 | 30 | 17 | 0,031 | 2 |
07670-1120401 | steel | flat point to DIN 78 | M12 | 40 | 17 | 0,038 | 2 |
07670-1120501 | steel | flat point to DIN 78 | M12 | 50 | 17 | 0,045 | 2 |
07670-1120601 | steel | flat point to DIN 78 | M12 | 60 | 17 | 0,053 | 2 |
07670-1120801 | steel | flat point to DIN 78 | M12 | 80 | 17 | 0,067 | 2 |
07670-1160301 | steel | flat point to DIN 78 | M16 | 30 | 22 | 0,064 | 2 |
07670-1160401 | steel | flat point to DIN 78 | M16 | 40 | 22 | 0,078 | 2 |
07670-1160501 | steel | flat point to DIN 78 | M16 | 50 | 22 | 0,092 | 2 |
07670-1160601 | steel | flat point to DIN 78 | M16 | 60 | 22 | 0,105 | 2 |
07670-1160801 | steel | flat point to DIN 78 | M16 | 80 | 22 | 0,132 | 2 |
Order No. | Material | Surface finish | D | L | L1 | Approx. weight kg | L2 | Price_Nox |
07670-1040202 | stainless steel | flat point to DIN 78 | M4 | 20 | 6 | 0,002 | 1 | 0,50 |
07670-1040302 | stainless steel | flat point to DIN 78 | M4 | 30 | 6 | 0,003 | 1 | 0,53 |
07670-1040402 | stainless steel | flat point to DIN 78 | M4 | 40 | 6 | 0,004 | 1 | 0,58 |
07670-1040502 | stainless steel | flat point to DIN 78 | M4 | 50 | 6 | 0,005 | 1 | 0,64 |
07670-1050202 | stainless steel | flat point to DIN 78 | M5 | 20 | 8 | 0,003 | 1 | 0,58 |
07670-1050302 | stainless steel | flat point to DIN 78 | M5 | 30 | 8 | 0,004 | 1 | 0,61 |
07670-1050402 | stainless steel | flat point to DIN 78 | M5 | 40 | 8 | 0,006 | 1 | 0,64 |
07670-1050502 | stainless steel | flat point to DIN 78 | M5 | 50 | 8 | 0,007 | 1 | 0,74 |
07670-1050602 | stainless steel | flat point to DIN 78 | M5 | 60 | 8 | 0,008 | 1 | 0,86 |
07670-1060202 | stainless steel | flat point to DIN 78 | M6 | 20 | 9 | 0,004 | 1,5 | 0,64 |
07670-1060302 | stainless steel | flat point to DIN 78 | M6 | 30 | 9 | 0,007 | 1,5 | 0,72 |
07670-1060402 | stainless steel | flat point to DIN 78 | M6 | 40 | 9 | 0,008 | 1,5 | 0,72 |
07670-1060502 | stainless steel | flat point to DIN 78 | M6 | 50 | 9 | 0,009 | 1,5 | 0,78 |
07670-1060602 | stainless steel | flat point to DIN 78 | M6 | 60 | 9 | 0,011 | 1,5 | 0,89 |
07670-1080202 | stainless steel | flat point to DIN 78 | M8 | 20 | 12 | 0,009 | 1,5 | 0,86 |
07670-1080302 | stainless steel | flat point to DIN 78 | M8 | 30 | 12 | 0,012 | 1,5 | 0,92 |
07670-1080402 | stainless steel | flat point to DIN 78 | M8 | 40 | 12 | 0,015 | 1,5 | 0,97 |
07670-1080502 | stainless steel | flat point to DIN 78 | M8 | 50 | 12 | 0,018 | 1,5 | 1,04 |
07670-1080602 | stainless steel | flat point to DIN 78 | M8 | 60 | 12 | 0,022 | 1,5 | 1,12 |
07670-1080802 | stainless steel | flat point to DIN 78 | M8 | 80 | 12 | 0,027 | 1,5 | 1,41 |
07670-1100202 | stainless steel | flat point to DIN 78 | M10 | 20 | 14 | 0,014 | 2 | 1,07 |
07670-1100302 | stainless steel | flat point to DIN 78 | M10 | 30 | 14 | 0,019 | 2 | 1,14 |
07670-1100402 | stainless steel | flat point to DIN 78 | M10 | 40 | 14 | 0,024 | 2 | 1,24 |
07670-1100502 | stainless steel | flat point to DIN 78 | M10 | 50 | 14 | 0,029 | 2 | 1,33 |
07670-1100602 | stainless steel | flat point to DIN 78 | M10 | 60 | 14 | 0,034 | 2 | 1,41 |
07670-1100802 | stainless steel | flat point to DIN 78 | M10 | 80 | 14 | 0,044 | 2 | 1,75 |
07670-1120302 | stainless steel | flat point to DIN 78 | M12 | 30 | 17 | 0,031 | 2 | 1,68 |
07670-1120402 | stainless steel | flat point to DIN 78 | M12 | 40 | 17 | 0,038 | 2 | 1,65 |
07670-1120502 | stainless steel | flat point to DIN 78 | M12 | 50 | 17 | 0,045 | 2 | 1,76 |
07670-1120602 | stainless steel | flat point to DIN 78 | M12 | 60 | 17 | 0,053 | 2 | 1,88 |
07670-1120802 | stainless steel | flat point to DIN 78 | M12 | 80 | 17 | 0,067 | 2 | 2,22 |
07670-1160302 | stainless steel | flat point to DIN 78 | M16 | 30 | 22 | 0,064 | 2 | 1,50 |
07670-1160402 | stainless steel | flat point to DIN 78 | M16 | 40 | 22 | 0,078 | 2 | 1,85 |
07670-1160502 | stainless steel | flat point to DIN 78 | M16 | 50 | 22 | 0,092 | 2 | 2,19 |
07670-1160602 | stainless steel | flat point to DIN 78 | M16 | 60 | 22 | 0,105 | 2 | 2,51 |
07670-1160802 | stainless steel | flat point to DIN 78 | M16 | 80 | 22 | 0,132 | 2 | 3,18 |
