Spannverschlüsse mit Spannbügel

Artikelnummer: 05530

Spannverschlüsse mit Spannbügel

Produktinfo

Material
Steel or stainless steel 1.4301

Yta
Galvanized and blue chromated;stainless steel natural finish

Notera
Fasteners with a pulling latch for safe holding and locking of flaps, container lids, machine covers and the like. The clamping stroke exceeds the dead centre point which makes them vibration proof. Fastening force is applied by twisting of a pulling latch. Fasteners can be secured against unintentional loosening or sealed with leads using the borehole D2. The fasteners can be screwed on or rivetted. Please order clamps separately.

Order No.MaterialFormD2Holding force F1 NApprox. weight kg
05530-1330571steelA2,810000,018
05530-2350741steelB3,220000,045
05530-1330572stainless steelA2,810000,018
05530-2350742stainless steelB3,220000,039
Order No.MaterialFormApprox. weight kg
05530-9136281steelA0,005
05530-9242451steelB0,013
05530-9136282stainless steelA0,005
05530-9242452stainless steelB0,013

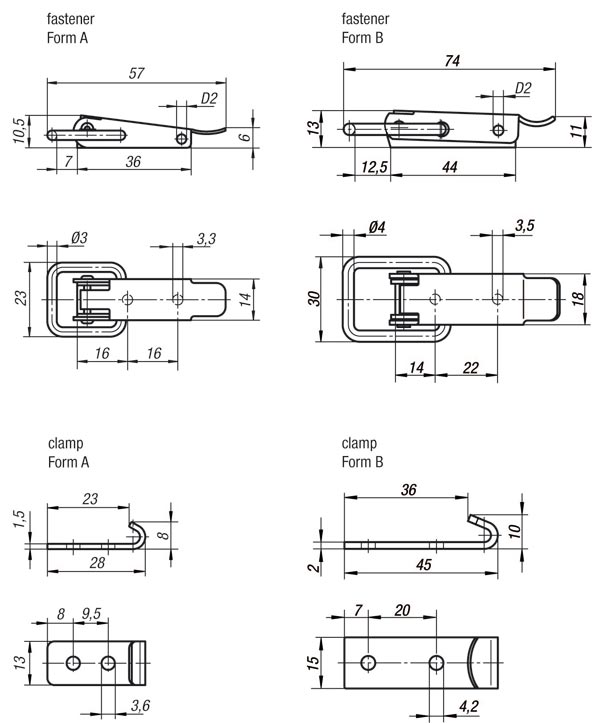

Konstruktion
