Gabelstücke mit Gewindebolzen
Artikelnummer: 07620
Produktinfo
Material
Tempered steel 1.1191
Yta
Heat-treated and black oxide finish
Notera
Suitable Hinge Pin, see 04250.

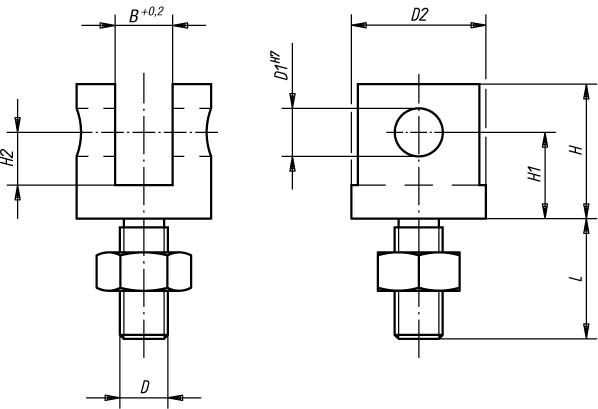

| Order No. | D | ToleranceD1 | D2 | B | ToleranceB | H2 | L | Approx. weight g | H | H1 | D1 |
|---|
| 07620-05 | M5 | H7 | 12 | 6 | +0,2 | 7 | 14,5 | 8,5 | 16 | 10 | 5 |
| 07620-06 | M6 | H7 | 16 | 7 | +0,2 | 8 | 15 | 14,0 | 19 | 12 | 6 |
| 07620-08 | M8 | H7 | 20 | 9 | +0,2 | 10 | 20 | 20,0 | 23 | 15 | 8 |
| 07620-10 | M10 | H7 | 28 | 12 | +0,2 | 11 | 25 | 35,0 | 28 | 18 | 10 |
| 07620-12 | M12 | H7 | 30 | 14 | +0,2 | 13,5 | 30 | 70,0 | 34 | 21 | 12 |
| 07620-14 | M14 | H7 | 36 | 16 | +0,2 | 15 | 35 | 84,0 | 37 | 23 | 14 |
| 07620-16 | M16 | H7 | 40 | 17 | +0,2 | 17 | 40 | 140,0 | 42 | 26 | 16 |
| 07620-20 | M20 | H7 | 50 | 22 | +0,2 | 21 | 50 | 160,0 | 52 | 32 | 18 |

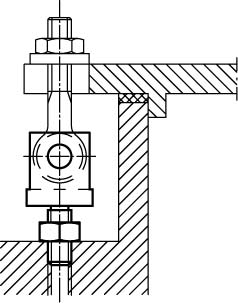

Konstruktion
