Druckstücke DIN 6311
Artikelnummer: 07140
Produktinfo
Material
Steel case-hardened, snap ring in spring steel
Yta
Black oxide finish
Notera
When fitting the Thrust Pad, ensure that it is inclined as far as possible in the direction of the snap ring opening. The snap ring is supplied assembled.

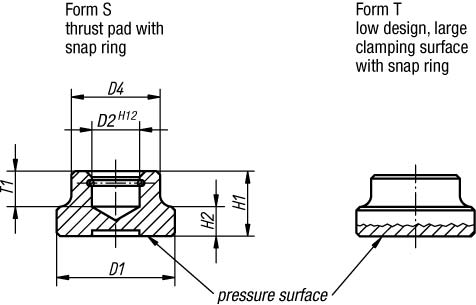

| Order No. | D2 | ToleranceD2 | D4 | H2 | T1 | For grub screws with trust point DIN 6332 | Approx. weight g | Form | D1 | H1 |
|---|
| 07140-06 | 4,6 | H12 | 10 | 2,5 | 4 | M6 | 4,4 | S | 12 | 7 |
| 07140-08 | 6,1 | H12 | 12 | 4 | 5 | M8 | 9 | S | 16 | 9 |
| 07140-10 | 8,1 | H12 | 15 | 5 | 6 | M10 | 17 | S | 20 | 11 |
| 07140-12 | 8,1 | H12 | 18 | 6 | 7 | M12 | 33 | S | 25 | 13 |
| 07140-16 | 12,1 | H12 | 22 | 7 | 7,5 | M16 | 57 | S | 32 | 15 |
| 07140-20 | 15,6 | H12 | 28 | 9 | 8 | M20 | 103 | S | 40 | 16 |
| 07140-108 | 6,1 | H12 | 12 | 4 | 4,5 | M8 | 17 | T | 25 | 8 |
| 07140-110 | 8,1 | H12 | 18 | 6 | 6 | M10 / M12 | 42 | T | 32 | 10 |
| 07140-116 | 12,1 | H12 | 22 | 7 | 7 | M16 | 75 | T | 40 | 12 |
