Grippers quadratisch
Artikelnummer: 07115
Produktinfo
Material
Hardened tool steel resp. hard metal
Yta
Black oxide finish
Notera
Grippers and Inserts are ideal for use in clamping arms, gripping systems, clamping fixtures, clamping jaws and toggle locators.
Grippers transfer very high torque values. This is also true when they are applied to hard materials and surface irregularities. Grippers guarantee above average holding forces at high cutting forces.
The serrated hard metal tips are soldered in.
| Order No. | A | B | E | Approx. weight kg | ToleranceA | Serration | G | Form |
|---|
| 07115-1005 | 10 | 10 | - | 0,005 | -0,15 | superfine | M5 | A |
| 07115-1205 | 12 | 10 | - | 0,010 | -0,15 | fine | M5 | A |
| 07115-2005 | 20 | 10 | - | 0,025 | -0,15 | fine | M5 | A |
| 07115-2506 | 25 | 10 | - | 0,045 | -0,15 | fine | M6 | A |
| 07115-12057 | 12 | 10 | 10,3 | 0,010 | -0,15 | fine | M5 | B |

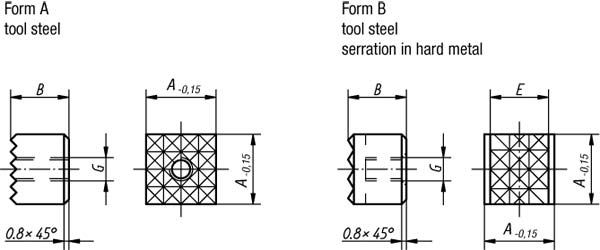

Konstruktion
