Keil-Spannsegmente Form B
Artikelnummer: 04527
Produktinfo
Notera
Because of their compact design, the Taper Clamping Units are especially suitable for horizontal and vertical multiple clamping. The hardened and ground taper surfaces make high clamping forces possible.

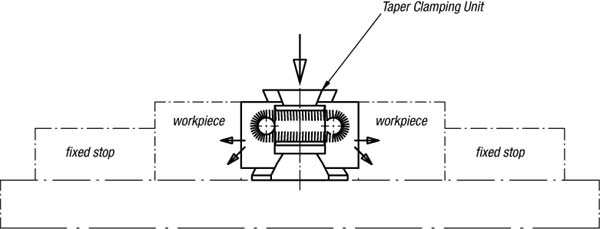

The appropriate Taper Clamping Units can be mounted either in an M.T.P. hole or a T-slot. Inserting a socket head screw to DIN 912 moves the two clamping segments outwards and presses the workpieces against a fixed stop.
The so-called "hold-down effect" is caused by the double tapers of this model.
Travel path according to Order No.:
04527-12 = ±1.0 mm
04527-16 = ±1.5 mm

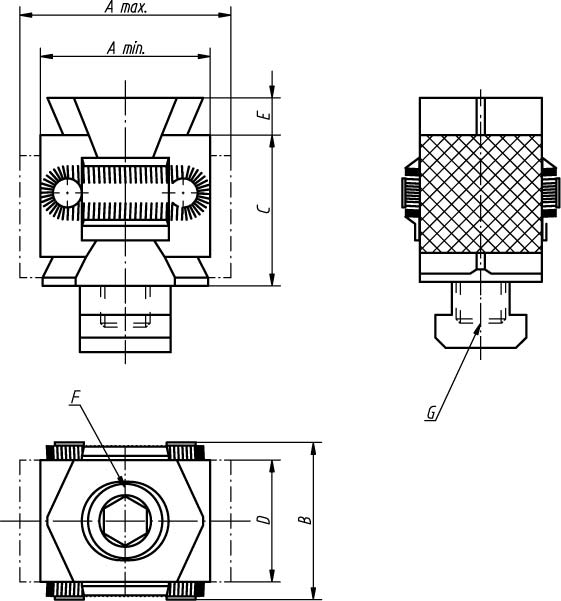

| Order No. | A min. | A max. | B | C | D | E | Tightening torque Nm | Approx. weight kg | G | Clamping force kN | F Socket Head Screw DIN 912 |
|---|
| 04527-12 | 42 | 49 | 41 | 36 | 30 | 5 | 85 | 0,318 | for threaded hole | 40 | M12x60 |
| 04527-1214 | 42 | 49 | 41 | 36 | 30 | 5 | 85 | 0,353 | for T-slot 14 | 40 | M12x50 |
| 04527-16 | 57 | 67 | 56 | 50 | 42 | 5 | 210 | 0,843 | for threaded hole | 60 | M16x80 |
| 04527-1618 | 57 | 67 | 56 | 50 | 42 | 5 | 210 | 0,912 | for T-slot 18 | 60 | M16x70 |
Konstruktion
