Kugeldruckschraube ohne Kopf mit Feingewinde, volle Kugel
Artikelnummer: 07107
Produktinfo
Notera

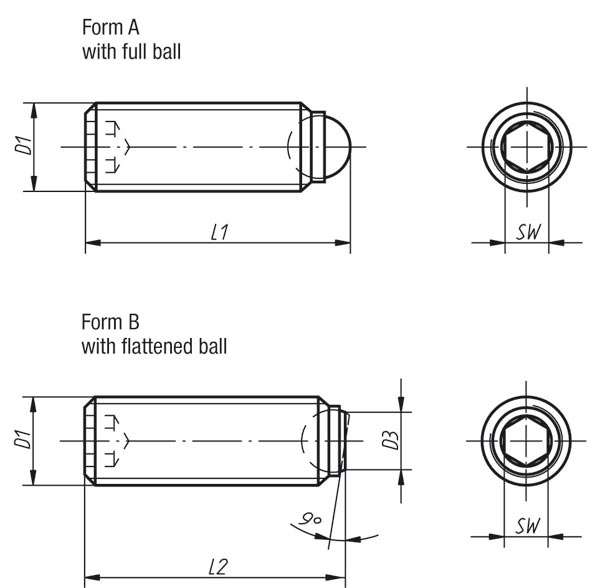

Form A with full ball is used when a clean, polished pressure surface is required. Surfaces which are not plane and parallel can be firmly clamped or supported with form B with flattened ball because the movable ball can adapt itself up to 9°.
Fine thread enables extremely sensitive alignment of the ball pressure screws.
| Order No. | Form | D1 | D3 | L1 | L2 | SW | Load capacity max. kN (static load only) | Ball-Ø |
|---|
| 07107-10810 | A | M8x1 | - | 11,2 | - | 4 | 10 | 5,5 |
| 07107-10820 | A | M8x1 | - | 21,2 | - | 4 | 15 | 5,5 |
| 07107-11012 | A | M10x1 | - | 13,7 | - | 5 | 20 | 7 |
| 07107-11025 | A | M10x1 | - | 26,7 | - | 5 | 20 | 7 |
| 07107-11216 | A | M12x1,5 | - | 18 | - | 6 | 30 | 8,5 |
| 07107-11230 | A | M12x1,5 | - | 32 | - | 6 | 30 | 8,5 |
| 07107-11620 | A | M16x1,5 | - | 23,3 | - | 8 | 60 | 12 |
| 07107-11635 | A | M16x1,5 | - | 38,3 | - | 8 | 60 | 12 |
| 07107-12030 | A | M20x1,5 | - | 34,2 | - | 10 | 90 | 15 |
| 07107-12040 | A | M20x1,5 | - | 44,2 | - | 10 | 90 | 15 |
| 07107-20810 | B | M8x1 | 4,1 | - | 10,3 | 4 | 10 | 5,5 |
| 07107-20820 | B | M8x1 | 4,1 | - | 20,3 | 4 | 15 | 5,5 |
| 07107-21012 | B | M10x1 | 5,6 | - | 12,3 | 5 | 20 | 7 |
| 07107-21025 | B | M10x1 | 5,6 | - | 25,3 | 5 | 20 | 7 |
| 07107-21216 | B | M12x1,5 | 7 | - | 16,2 | 6 | 30 | 8,5 |
| 07107-21230 | B | M12x1,5 | 7 | - | 30,2 | 6 | 30 | 8,5 |
| 07107-21620 | B | M16x1,5 | 10,7 | - | 20 | 8 | 60 | 12 |
| 07107-21635 | B | M16x1,5 | 10,7 | - | 35 | 8 | 60 | 12 |
| 07107-22030 | B | M20x1,5 | 13,5 | - | 30 | 10 | 90 | 15 |
| 07107-22040 | B | M20x1,5 | 13,5 | - | 40 | 10 | 90 | 15 |
