Kugeldruckschrauben mit Kopf, Nirosta

Artikelnummer: 07101

Kugeldruckschrauben mit Kopf, Nirosta

Produktinfo

Notera

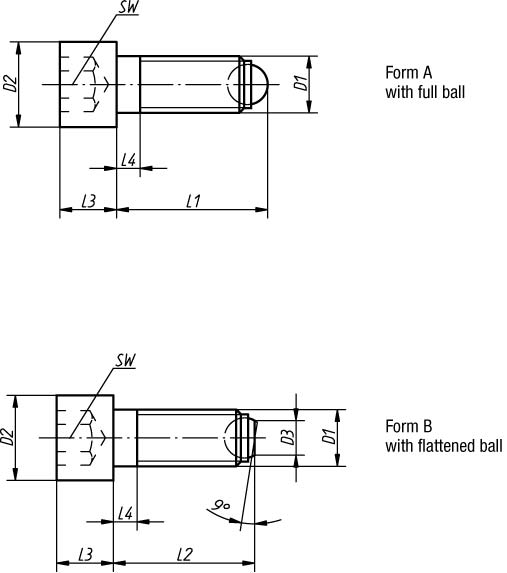

Form A with full ball is used when a clean, polished pressure surface is required. Surfaces which are not plane and parallel can be firmly clamped or supported with form B with flattened ball because the movable ball can adapt itself up to 9°.

Order No.D2D3L1L3L4SWLoad capacity max. kN (static load only)Approx. weight gBall-ØD1L2Price_NoxForm
07101-1062010-20,8635-6,64M6-2,60 A
07101-1063010-30,8635-8,74M6-2,64 A
07101-1064010-40,86165-11,04M6-2,67 A
07101-1082013-21,283,56-13,55,5M8-2,99 A
07101-1083513-36,283,56-19,05,5M8-3,31 A
07101-1085013-51,28226-25,05,5M8-3,68 A
07101-1102516-26,7104,58-26,07M10-3,95 A
07101-1104016-41,7104,58-34,07M10-4,28 A
07101-1106016-61,710288-47,07M10-4,60 A
07101-1123018-3212510-48,08,5M12-5,27 A
07101-1125018-5212510-56,08,5M12-5,86 A
07101-1128018-82124410-83,08,5M12-6,45 A
07101-1164024-43,316614-91,012M16-9,01 A
07101-1166024-63,316614-122,012M16-9,40 A
07101-1168024-83,3163614-154,012M16-10,37 A
07101-20620103,2-63596,64M6203,95 B
07101-20630103,2-63598,74M6303,95 B
07101-20640103,2-6165911,04M6404,00 B
07101-20820134,5-83,561513,55,5M8204,90 B
07101-20835134,5-83,561519,05,5M8355,23 B
07101-20850134,5-82261525,05,5M8505,65 B
07101-21025166-104,582026,07M10256,05 B
07101-21040166-104,582034,07M10406,37 B
07101-21060166-102882047,07M10606,66 B
07101-21230187,2-125103048,08,5M12307,98 B
07101-21250187,2-125103056,08,5M12508,60 B
07101-21280187,2-1244103083,08,5M12809,23 B
07101-216402410,7-166146091,012M164013,64 B
07101-216602410,7-1661460122,012M166013,86 B
07101-216802410,7-16361460154,012M168014,89 B
