Rhombusmuttern für T-Nuten
Artikelnummer: 07080
Produktinfo
Material
Tempered steel
Yta
Heat-treated class 8, black oxide finish
Notera
The benefit of Rhombic Nuts for T-slots is that they can be fitted in the slot from the top. They are particularly expedient for long T-slots, or when the configuration on the machine table does not permit clamping screws or nuts for T-slots to be inserted from the side.

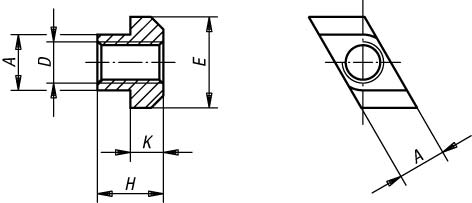

| Order No. | D | A | E | K | Approx. weight kg | Nominal size of slot | H |
|---|
| 07080-105 | M5 | 5,6 | 10 | 4 | 0,005 | 6 | 8 |
| 07080-106 | M6 | 7,6 | 13 | 6 | 0,007 | 8 | 10 |
| 07080-108 | M8 | 9,7 | 15 | 6 | 0,009 | 10 | 12 |
| 07080-110 | M10 | 11,7 | 18 | 7 | 0,011 | 12 | 14 |
| 07080-210 | M10 | 13,5 | 22 | 8 | 0,020 | 14 | 16 |
| 07080-310 | M10 | 17,5 | 28 | 10 | 0,048 | 18 | 20 |
| 07080-112 | M12 | 13,7 | 22 | 8 | 0,020 | 14 | 16 |
| 07080-114 | M14 | 15,7 | 25 | 9 | 0,030 | 16 | 18 |
| 07080-116 | M16 | 17,7 | 28 | 10 | 0,045 | 18 | 20 |
| 07080-216 | M16 | 19,7 | 32 | 12 | 0,070 | 20 | 24 |
| 07080-316 | M16 | 21,5 | 35 | 14 | 0,095 | 22 | 28 |
| 07080-416 | M16 | 27,5 | 44 | 18 | 0,215 | 28 | 36 |
| 07080-118 | M18 | 19,7 | 32 | 12 | 0,070 | 20 | 24 |
| 07080-120 | M20 | 21,7 | 35 | 14 | 0,095 | 22 | 28 |
| 07080-124 | M24 | 27,7 | 44 | 18 | 0,215 | 28 | 36 |
| 07080-130 | M30 | 35,6 | 54 | 22 | 0,430 | 36 | 44 |
| 07080-136 | M36 | 41,5 | 65 | 26 | 0,690 | 42 | 52 |
