Klemmnaben
Artikelnummer: 06362
Produktinfo
Notera
Clamp hubs can be quickly and easily attached to shafts, adjusted in the proper operating position and then locked. For secure transmission of torque, shaft tolerance should not exceed h11.
At fastening thread (D2), customer-specific handles or 06360 handles can be screwed on.

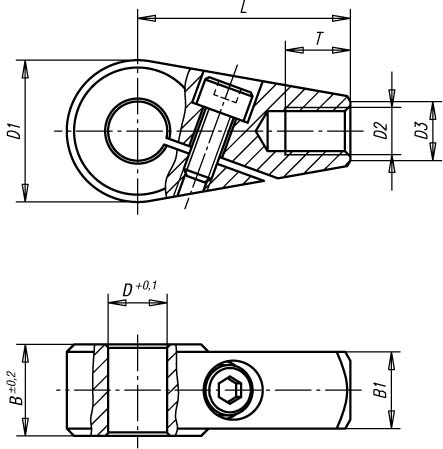

| Order No. | D | D2 | D3 | B | B1 | L | T | Approx. weight kg | ToleranceD | ToleranceB | D1 |
|---|
| 06362-0810 | 10 | M8 | 10 | 15,5 | 13 | 36 | 11 | 0,078 | +0,1 | ±0,2 | 24 |
| 06362-0812 | 12 | M8 | 10 | 15,5 | 13 | 36 | 11 | 0,074 | +0,1 | ±0,2 | 24 |
| 06362-1012 | 12 | M10 | 12 | 17,5 | 15 | 41 | 14 | 0,118 | +0,1 | ±0,2 | 28 |
| 06362-1014 | 14 | M10 | 12 | 17,5 | 15 | 41 | 14 | 0,113 | +0,1 | ±0,2 | 28 |
| 06362-1214 | 14 | M12 | 14 | 19,5 | 17 | 45 | 16 | 0,169 | +0,1 | ±0,2 | 32 |
| 06362-1216 | 16 | M12 | 14 | 19,5 | 17 | 45 | 16 | 0,162 | +0,1 | ±0,2 | 32 |
