Keil-Spannsegmente Form A+L mit Längenzugabe für kundenspezifische Formen
Artikelnummer: 04526
Produktinfo
Notera

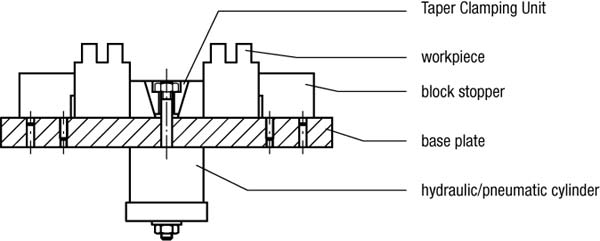

The special feature of the Taper Clamping Units "Form A+L" lies in the added length of 3 mm per clamping jaw for model 04526-08 and 5 mm for models 04526-12 and 04526-16. This extra length allows for forms adjusted to the workpiece geometry to be incorporated (see illustration).
The clamping jaws with Order No. 04526-08 are not serrated.
Travel path according to Order No.:
04526-08 = ±0.5 mm
04526-12 = ±1.0 mm
04526-16 = ±1.5 mm

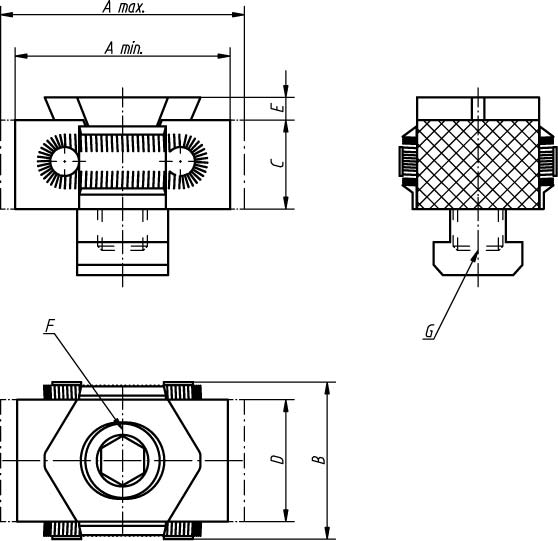

| Order No. | A min. | A max. | B | C | D | E | Tightening torque Nm | Approx. weight kg | G | Clamping force kN | F Socket Head Screw DIN 912 |
|---|
| 04526-08 | 33 | 37 | 29 | 15 | 21 | 2,5 | 25 | 0,084 | for threaded hole | 15 | M8x25 |
| 04526-0810 | 33 | 37 | 29 | 15 | 21 | 2,5 | 25 | 0,096 | for T-slot 10 | 15 | M8x25 |
| 04526-12 | 52 | 59 | 41 | 22 | 30 | 4 | 85 | 0,276 | for threaded hole | 30 | M12x40 |
| 04526-1214 | 52 | 59 | 41 | 22 | 30 | 4 | 85 | 0,303 | for T-slot 14 | 30 | M12x30 |
| 04526-16 | 67 | 76 | 56 | 29 | 42 | 5 | 210 | 0,668 | for threaded hole | 50 | M16x60 |
| 04526-1618 | 67 | 76 | 56 | 29 | 42 | 5 | 210 | 0,722 | for T-slot 18 | 50 | M16x50 |
