Federnde Seitendruckstücke ohne Druckbolzen
Artikelnummer: 03332
Produktinfo
Material
Sleeve in aluminium; receiving washer in steel, hardened and black oxide finish; spring in steel
Yta
Sleeve blue galvanized
Notera
Depending on the circumstances, the pressure pin can be fabricated by the customer and screwed into the threaded hole of the receiving washer.
Utilizing stroke (S) and the corresponding length (L), lateral pressure (F) can be achieved.
In addition, form B is equipped with a seal to prevent chips and dirt from entering.
| Order No. | D | D2 | ToleranceD2 | L | L1 | ToleranceL1 | S | F approx. N | Approx. weight kg | Form | D1 |
|---|
| 03332-31054 | 10 | 10 | H8 | 4 | 12 | -1 | 1,6 | 20 | 0,004 | A | M4 |
| 03332-31056 | 10 | 10 | H8 | 4 | 12 | -1 | 1,6 | 50 | 0,004 | A | M4 |
| 03332-31058 | 10 | 10 | H8 | 4 | 12 | -1 | 1,6 | 100 | 0,004 | A | M4 |
| 03332-31064 | 10 | 10 | H8 | 7,5 | 12 | -1 | 2 | 40 | 0,004 | A | M4 |
| 03332-31066 | 10 | 10 | H8 | 7,5 | 12 | -1 | 2 | 75 | 0,004 | A | M4 |
| 03332-31068 | 10 | 10 | H8 | 7,5 | 12 | -1 | 2 | 150 | 0,004 | A | M4 |
| 03332-31104 | 16 | 16 | H8 | 11,5 | 18 | -1 | 3,2 | 100 | 0,010 | A | M6 |
| 03332-31106 | 16 | 16 | H8 | 11,5 | 18 | -1 | 3,2 | 200 | 0,010 | A | M6 |
| 03332-31108 | 16 | 16 | H8 | 11,5 | 18 | -1 | 3,2 | 300 | 0,010 | A | M6 |
| 03332-32054 | 10 | 10 | H8 | 4 | 12 | -1 | 1,6 | 20 | 0,004 | B | M4 |
| 03332-32056 | 10 | 10 | H8 | 4 | 12 | -1 | 1,6 | 50 | 0,004 | B | M4 |
| 03332-32058 | 10 | 10 | H8 | 4 | 12 | -1 | 1,6 | 100 | 0,004 | B | M4 |
| 03332-32064 | 10 | 10 | H8 | 7,5 | 12 | -1 | 2 | 40 | 0,004 | B | M4 |
| 03332-32066 | 10 | 10 | H8 | 7,5 | 12 | -1 | 2 | 75 | 0,004 | B | M4 |
| 03332-32068 | 10 | 10 | H8 | 7,5 | 12 | -1 | 2 | 150 | 0,004 | B | M4 |
| 03332-32104 | 16 | 16 | H8 | 11,5 | 18 | -1 | 3,2 | 100 | 0,010 | B | M6 |
| 03332-32106 | 16 | 16 | H8 | 11,5 | 18 | -1 | 3,2 | 200 | 0,010 | B | M6 |
| 03332-32108 | 16 | 16 | H8 | 11,5 | 18 | -1 | 3,2 | 300 | 0,010 | B | M6 |

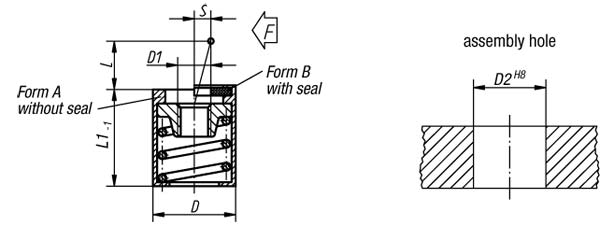

Konstruktion
