Steckbolzen
Artikelnummer: 03195
Produktinfo
Notera
Locking Pins are used for fast and easy fixing and joining of parts and workpieces.
Shearing force double-edged (F) = S · Tau aB max.

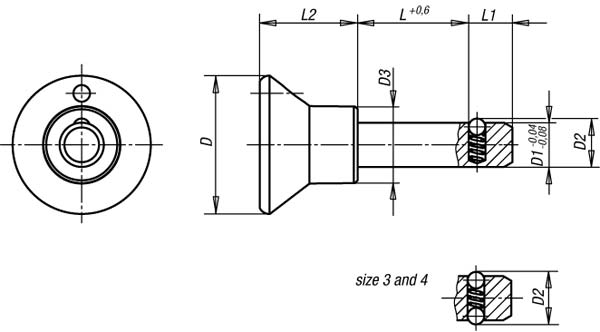

| Order No. | Size | D | D1 | D2 | D3 | L | L1 | L2 | Receiving hole H11 | Shearing force double-edged max. kN |
|---|
| 03195-2506010 | 1 | 25 | 6 | 6,5 | 14 | 10 | 7 | 17,7 | 6 | 22 |
| 03195-2506015 | 1 | 25 | 6 | 6,5 | 14 | 15 | 7 | 17,7 | 6 | 22 |
| 03195-2506020 | 1 | 25 | 6 | 6,5 | 14 | 20 | 7 | 17,7 | 6 | 22 |
| 03195-2506025 | 1 | 25 | 6 | 6,5 | 14 | 25 | 7 | 17,7 | 6 | 22 |
| 03195-2506030 | 1 | 25 | 6 | 6,5 | 14 | 30 | 7 | 17,7 | 6 | 22 |
| 03195-2506040 | 1 | 25 | 6 | 6,5 | 14 | 40 | 7 | 17,7 | 6 | 22 |
| 03195-2506050 | 1 | 25 | 6 | 6,5 | 14 | 50 | 7 | 17,7 | 6 | 22 |
| 03195-2508015 | 2 | 25 | 8 | 8,75 | 14 | 15 | 8 | 17,7 | 8 | 38 |
| 03195-2508020 | 2 | 25 | 8 | 8,75 | 14 | 20 | 8 | 17,7 | 8 | 38 |
| 03195-2508025 | 2 | 25 | 8 | 8,75 | 14 | 25 | 8 | 17,7 | 8 | 38 |
| 03195-2508030 | 2 | 25 | 8 | 8,75 | 14 | 30 | 8 | 17,7 | 8 | 38 |
| 03195-2508040 | 2 | 25 | 8 | 8,75 | 14 | 40 | 8 | 17,7 | 8 | 38 |
| 03195-2508050 | 2 | 25 | 8 | 8,75 | 14 | 50 | 8 | 17,7 | 8 | 38 |
| 03195-3310015 | 3 | 33 | 10 | 12 | 19 | 15 | 9 | 24 | 10 | 60 |
| 03195-3310020 | 3 | 33 | 10 | 12 | 19 | 20 | 9 | 24 | 10 | 60 |
| 03195-3310025 | 3 | 33 | 10 | 12 | 19 | 25 | 9 | 24 | 10 | 60 |
| 03195-3310030 | 3 | 33 | 10 | 12 | 19 | 30 | 9 | 24 | 10 | 60 |
| 03195-3310040 | 3 | 33 | 10 | 12 | 19 | 40 | 9 | 24 | 10 | 60 |
| 03195-3310050 | 3 | 33 | 10 | 12 | 19 | 50 | 9 | 24 | 10 | 60 |
| 03195-3312020 | 4 | 33 | 12 | 14,5 | 19 | 20 | 10 | 24 | 12 | 86 |
| 03195-3312030 | 4 | 33 | 12 | 14,5 | 19 | 30 | 10 | 24 | 12 | 86 |
| 03195-3312040 | 4 | 33 | 12 | 14,5 | 19 | 40 | 10 | 24 | 12 | 86 |
| 03195-3312050 | 4 | 33 | 12 | 14,5 | 19 | 50 | 10 | 24 | 12 | 86 |
