Keilspanner mit Bearbeitungszugabe

Produktinfo

Notera

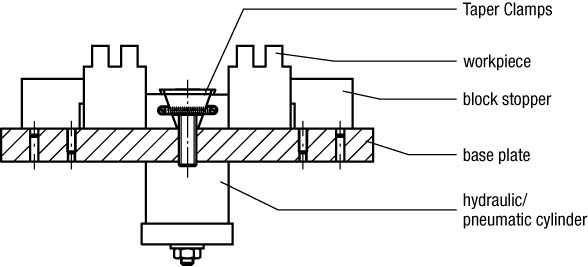

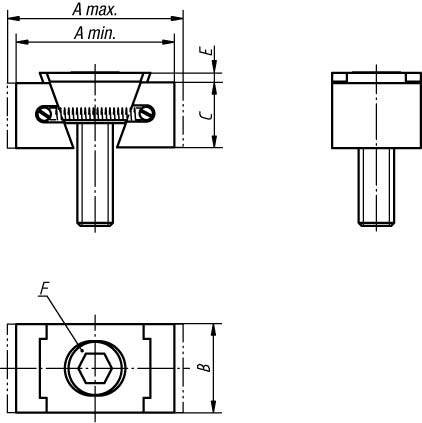

The special feature of the Taper Clamps lies in the added length. This extra length allows for forms adjusted to the workpiece geometry to be incorporated. Their compact design make the Taper Clamps especially suitable for multiple clamping. The hardened and ground taper surfaces make high clamping forces possible. The appropriate Taper Clamps can be mounted either in an M.T.P. hole or a T-slot. Inserting a socket head screw moves the two clamping segments outwards and presses the workpieces against the fixed stop of the machining device. The Taper Clamp can be displaced or balancing tolerances with the incorporated longhole. Travel path according: M8 = ±0.5 mm M10 = ±1.0 mm M12 = ±1.0 mm M16 = ±1.5 mm
