Präzisions-Arretierbolzen mit konischer Aufnahme
Artikelnummer: 03182
Produktinfo
Material
Steel, grip ball thermoplastic
Yta
Hardened and ground, grip ball anthracite grey
Notera
The Locking Bolts with sleeves are a perfect combination for rapid positioning and fixing.
The precise finish of both the locking bolt and the sleeve guarantees high repeating accuracy when assembling two elements.
Technical Information see Assembly and Installation Instructions.

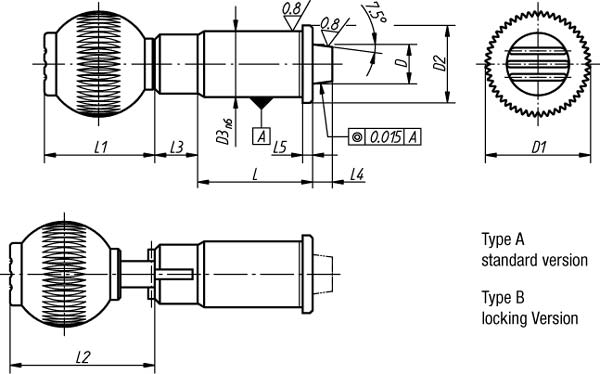

Order No. | D | D2 | D3 | ToleranceD3 | L | L3 | L4 min. | L5 | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | Internal thread Grip Ball | Approx. weight kg | Type | D1 | L1 | L2 |
03182-010 | 10 | 19 | 16 | n6 | 31 | 13 | 6 | 2,5 | 19 | 29 | M6 | 0,067 | A | 25 | 25 | - |
03182-012 | 12 | 23 | 20 | n6 | 35 | 13 | 6 | 3 | 22 | 35 | M8 | 0,127 | A | 32 | 33 | - |
03182-016 | 16 | 28 | 25 | n6 | 42 | 13 | 6 | 3 | 30 | 50 | M10 | 0,221 | A | 40 | 41,5 | - |
03182-020 | 20 | 33 | 30 | n6 | 50 | 13 | 6 | 3 | 46 | 63 | M10 | 0,350 | A | 40 | 41,5 | - |
03182-025 | 25 | 42 | 38 | n6 | 60 | 13 | 6 | 3 | 39 | 73 | M10 | 0,655 | A | 50 | 51 | - |
03182-110 | 10 | 19 | 16 | n6 | 31 | 13 | 6 | 2,5 | 19 | 29 | M6 | 0,067 | B | 25 | 25 | 32,5 |
03182-112 | 12 | 23 | 20 | n6 | 35 | 13 | 6 | 3 | 22 | 35 | M8 | 0,127 | B | 32 | 33 | 40,5 |
03182-116 | 16 | 28 | 25 | n6 | 42 | 13 | 6 | 3 | 30 | 50 | M10 | 0,221 | B | 40 | 41,5 | 49 |
03182-120 | 20 | 33 | 30 | n6 | 50 | 13 | 6 | 3 | 46 | 63 | M10 | 0,350 | B | 40 | 41,5 | 49 |
03182-125 | 25 | 42 | 38 | n6 | 60 | 13 | 6 | 3 | 39 | 73 | M10 | 0,655 | B | 50 | 51 | 58,5 |
Konstruktion
