Spanndorne mit seitlicher Klemmung
Artikelnummer: 03157_1
Produktinfo
Material
Housing mild steel; clamping screw in tempered steel
Yta
Housing, black oxide finish; clamping screw, heat-treated class 10.9, hardened and PTFE coated
Notera

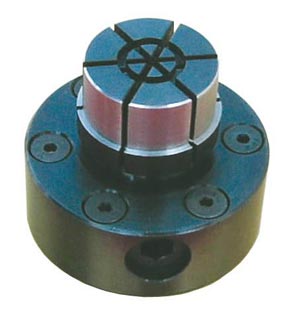

The Clamping Plug is due to the lateral clamping ideal for second machining of turned and milled parts with blind hole. The diameter D can be adapted to the diameter of the workpiece to be clamped by turning or milling.
The clamping movement is carried out manually with hexagon socket wrench.
* D min. = smallest admissible diameter to which "D" may be turned or milled

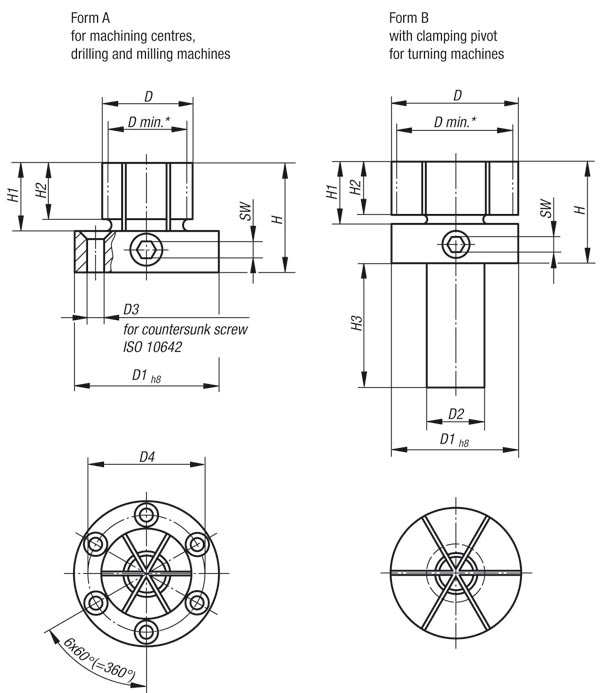

| Order No. | Form | D | D min. | D1 | D2 | D3 for countersunk screw | D4 | H | H1 | H2 | H3 | SW | Tightening torque max. Nm | Clamping force max. kN | Approx. weight kg |
|---|
| 03157-118029 | A | 28,7 | 17,8 | 50 | - | M4 | 39,4 | 41 | 22 | 17,5 | - | 6 | 66 | 20 | 0,425 |
| 03157-218053 | B | 53,3 | 18 | 53,3 | 25 | - | - | 44,4 | 25 | 21 | 45 | 6 | 66 | 20 | 0,81 |
