Spanndorne
Artikelnummer: 03157
Produktinfo
Material
Housing mild steel, tapered-head bolt hardened steel
Yta
Tapered-head bolt hardened, black oxide finish;
taper element case-hardened
Notera
The Clamping Plug is ideal for second machining of turned parts. The diameter D can be adapted to the diameter of the workpiece to be clamped by turning or milling.
Low construction - no clamps in the way.
Clamping movement with hexagon socket wrench or hydraulically.
* D min. = smallest admissible diameter to which "D" may be turned or milled
| Order No. | D | D min. | D2 | D3 for countersunk screw | H2 | H3 | Clamping force max. kN | Approx. weight kg | Tapered-head bolt D4 | Tapered-head bolt SW | Tightening torque max. Nm | D1 | H | H1 |
|---|
| 03157-020407 | 7,4 | 4,1 | 13,7 | M2 | 6,1 | 4,1 | 1,1 | 0,010 | M2 | 1,5 | 0,7 | 20 h9 | 10,7 | 7,6 |
| 03157-040812 | 12,4 | 7,2 | 21 | M3 | 15 | 8 | 4,2 | 0,040 | M4 | 3 | 5 | 29,7 h9 | 21,8 | 16 |
| 03157-061214 | 14,2 | 12,2 | 23,1 | M3 | 15 | 12 | 8,5 | 0,070 | M6 | 5 | 17 | 31,5 h9 | 24,9 | 19 |
| 03157-081420 | 20 | 13,5 | 29 | M3 | 15 | 14 | 11,1 | 0,100 | M8 | 6 | 34 | 37,5 h9 | 24,9 | 19 |
| 03157-062027 | 27 | 20 | 39,4 | M4 | 17,5 | 17 | 20 | 0,180 | M10 | 8 | 60 | 50 h8 | 28,6 | 22,2 |
| 03157-102535 | 35,3 | 25,4 | 45,5 | M4 | 20,6 | 21 | 26,3 | 0,320 | M12 | 10 | 150 | 56 h8 | 31,8 | 25,4 |
| 03157-123442 | 42 | 30 | 55,9 | M5 | 27 | 22 | 44,5 | 0,600 | M16 | 14 | 280 | 69,5 h8 | 39,6 | 31,8 |
| 03157-123452 | 51 | 30 | 63,9 | M5 | 27 | 22 | 44,5 | 0,700 | M16 | 14 | 280 | 75,5 h8 | 39,6 | 31,8 |
| 03157-163077 | 77 | 30 | 92,5 | M6 | 32,3 | 20 | 44,5 | 1,730 | M16 | 14 | 280 | 107,5 h8 | 45,5 | 37,6 |
| 03157-1630103 | 103 | 30 | 118 | M6 | 32 | 20 | 44,5 | 2,860 | M16 | 14 | 280 | 132,9 h9 | 46 | 38 |

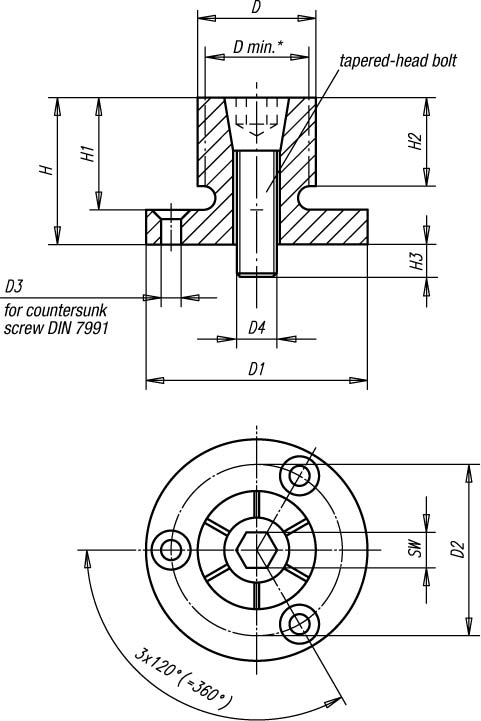

Konstruktion
