Positionierbolzen spreizbar
Artikelnummer: 03151
Produktinfo
Material
Tempered steel
Yta
Heat-treated and black oxide finish,
locating diameter and guide surfaces ground
Notera

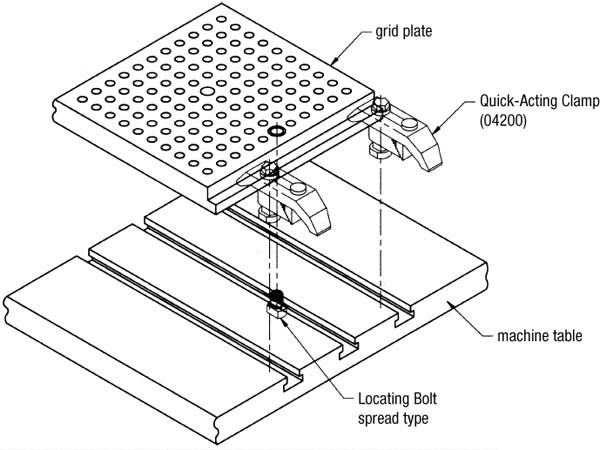

With the aid of spread type Locating Bolts, grid plates can, for example, be positioned on machine tables with T-slots (see illustration).
The plates to be positioned must have two holes matching the spread type shaft.
The continuous hexagonal socket in the spread type screw allows operation from two sides.
| Order No. | A | ToleranceA | B | B1 | ToleranceB1 | Approx. weight kg |
|---|
| 03151-12016 | 12 | -0,01 | 25 | 16 | -0,01 | 0,040 |
| 03151-14016 | 14 | -0,01 | 25 | 16 | -0,01 | 0,050 |
| 03151-16016 | 16 | -0,01 | 25 | 16 | -0,01 | 0,050 |
| 03151-18016 | 18 | -0,01 | 29 | 16 | -0,01 | 0,050 |
| 03151-20016 | 20 | -0,01 | 29 | 16 | -0,01 | 0,060 |
| 03151-22016 | 22 | -0,01 | 29 | 16 | -0,01 | 0,060 |
| 03151-24020 | 24 | -0,01 | 35 | 20 | -0,01 | 0,240 |
| 03151-28020 | 28 | -0,01 | 35 | 20 | -0,01 | 0,280 |
| 03151-32020 | 32 | -0,01 | 40 | 20 | -0,01 | 0,320 |

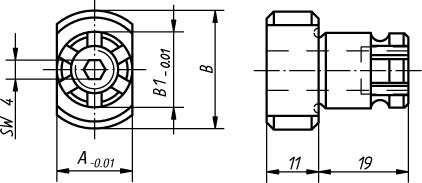

Konstruktion
