Aufnahmebolzen mit Kugelansatz abgeflacht Form C

Artikelnummer: 03107_1

Aufnahmebolzen mit Kugelansatz abgeflacht Form C

Produktinfo

Material
Tool steel or stainless steel 1.4305

Yta
Steel hardened and ground, stainless steel ground and kolsterised

Notera
Straight Bolts with ball end facilitate mounting operations as they are specifically designed for this process. The tendency to jam parts, also known as "drawer effect", is caused by forces not effective in the bolt axis or by parts being mounted at a slanted angle. This tendency is minimized by the ball end and the ball incline (see also mounting illustration 03108 Form B).

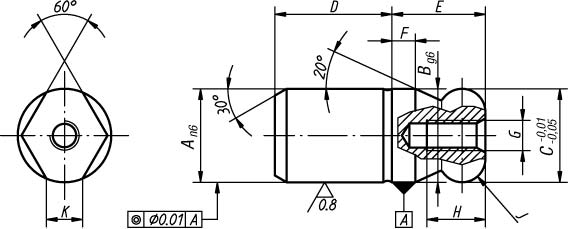

Order No.MaterialAToleranceABToleranceBCToleranceCDEFJKApprox. weight kgHG
03107-082steel8n68g68-0,01/-0,051082R 21,90,0056M3
03107-102steel10n610g610-0,01/-0,0513102,5R 2,52,50,0116M3
03107-122steel12n612g612-0,01/-0,0515123R 32,50,0178M4
03107-162steel16n616g616-0,01/-0,0520164R 44,30,04410M5
03107-202steel20n620g620-0,01/-0,0525205R 550,08810M5
03107-252steel25n625g625-0,01/-0,0525256R 65,60,14910M5
03107-302steel30n630g630-0,01/-0,0530308R 88,80,27012M6
03107-402steel40n640g640-0,01/-0,05404010R 1012,80,65712M6
03107-502steel50n650g650-0,01/-0,05505012R 1216,71,24312M6
03107-5082stainless steel8n68g68-0,01/-0,051082R 21,90,0056M3
03107-5102stainless steel10n610g610-0,01/-0,0513102,5R 2,52,50,0116M3
03107-5122stainless steel12n612g612-0,01/-0,0515123R 32,50,0178M4
03107-5162stainless steel16n616g616-0,01/-0,0520164R 44,30,04410M5
03107-5202stainless steel20n620g620-0,01/-0,0525205R 550,08810M5

Konstruktion
